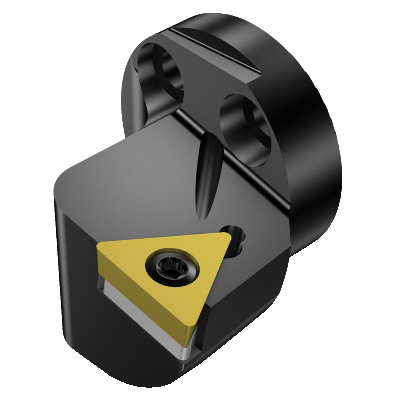

Sandvik Coromant 5764414 CoroTurn® 107 SL Screw Mounted Turning Head, 1.4094 in OAL, Left Hand, TCMT 16T308 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5764414 CoroTurn® 107 SL Screw Mounted Turning Head, 1.4094 in OAL, Left Hand, TCMT 16T308 Insert
SKU1252260
MFGR #5764414
Your Cost: $570.41/ea
Sandvik Coromant Turning Head, SL Screw Mounted, Series: CoroTurn® 107, 1.4094 in Overall Length, 570-STFCR/L Insert, Insert Compatibility: TCMT 16T308, Left Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Head, SL Screw Mounted, Series: CoroTurn® 107, 1.4094 in Overall Length, 570-STFCR/L Insert, Insert Compatibility: TCMT 16T308, Left Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
Alternate Catalog Number 570-STFCL-40-16 Catalog Number 5764414 Center to Cutting Height 40mm Country of Origin NO Finish SL, Screw Mounted Gross Weight Per Pack 0.6600 lb Head Length|Projection CoroTurn® 107 Insert Style 570-STFCR/L Item Group 410 Master Insert TCMT 16 T3 08 Material Steel Overall Length 1.4094 in Series CoroTurn® 107 Type SL Screw Mounted UPC 11 69826229791 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 1.0629 in Cutting Direction Left Hand Insert Compatibility TCMT 16T308 Insert Holding Method Steel Number of Inserts 27 mm 0 deg body machine side 20 life cycle state 0 deg body workpiece side Axial concentric entry 40 - 60 deg insert screw clamping Axial concentric exit 40 mm Dia connection 50 mm Dia minimum bore 0 deg rake orthogonal 91 deg cutting edge -8 deg inclination 32 mm L functional -1 deg lead 0 deg ramping T insert shape 3/8 in insert seat size 3 Nm torque ANSI Code: 570-STFCL-40-16 ISO Code: 570-STFCL-40-16
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 570-STFCL-40-16 |
| Catalog Number | 5764414 |
| Center to Cutting Height | 40mm |
| Country of Origin | NO |
| Finish | SL, Screw Mounted |
| Gross Weight Per Pack | 0.6600 lb |
| Head Length|Projection | CoroTurn® 107 |
| Insert Style | 570-STFCR/L |
| Item Group | 410 |
| Master Insert | TCMT 16 T3 08 |
| Material | Steel |
| Overall Length | 1.4094 in |
| Series | CoroTurn® 107 |
| Type | SL Screw Mounted |
| UPC 11 | 69826229791 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 1.0629 in |
| Cutting Direction | Left Hand |
| Insert Compatibility | TCMT 16T308 |
| Insert Holding Method | Steel |
| Number of Inserts | 27 mm |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric entry |
| 40 - 60 deg insert screw clamping |
| Axial concentric exit |
| 40 mm Dia connection |
| 50 mm Dia minimum bore |
| 0 deg rake orthogonal |
| 91 deg cutting edge |
| -8 deg inclination |
| 32 mm L functional |
| -1 deg lead |
| 0 deg ramping |
| T insert shape |
| 3/8 in insert seat size |
| 3 Nm torque |
| ANSI Code: 570-STFCL-40-16 |
| ISO Code: 570-STFCL-40-16 |
