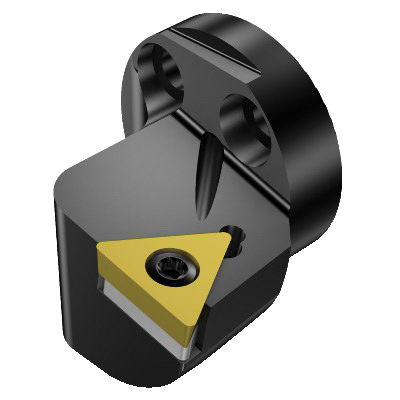

Sandvik Coromant 5764405 CoroTurn® 107 SL Screw Mounted Turning Head, 0.8661 in OAL, Left Hand, TCMT 090204 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5764405 CoroTurn® 107 SL Screw Mounted Turning Head, 0.8661 in OAL, Left Hand, TCMT 090204 Insert
SKU1252256
MFGR #5764405
Your Cost: $480.08/ea
Sandvik Coromant Turning Head, SL Screw Mounted, Series: CoroTurn® 107, 0.8661 in Overall Length, 570-STFCR/L Insert, Insert Compatibility: TCMT 090204, Left Hand Cutting, 0.433 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Head, SL Screw Mounted, Series: CoroTurn® 107, 0.8661 in Overall Length, 570-STFCR/L Insert, Insert Compatibility: TCMT 090204, Left Hand Cutting, 0.433 in Center to Cutting Edge, Steel
Alternate Catalog Number 570-STFCL-16-09 Catalog Number 5764405 Center to Cutting Height 400 Country of Origin NO Finish CoroTurn® 107 Gross Weight Per Pack 0.0700 lb Head Length|Projection SL, Screw Mounted Insert Style 570-STFCR/L Item Group 410 Material Steel Overall Length 0.8661 in Series CoroTurn® 107 Type SL Screw Mounted UPC 11 69826229720 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 0.433 in Cutting Direction Left Hand Insert Compatibility TCMT 090204 Insert Holding Method Steel Number of Inserts 11 mm 0 deg body machine side 20 life cycle state 0 deg body workpiece side Axial concentric entry 40 - 60 deg insert screw clamping Axial inclined exit 16 mm Dia connection 20 mm Dia minimum bore 0 deg rake orthogonal 91 deg cutting edge -6 deg inclination 20 mm L functional -1 deg lead 0 deg ramping T insert shape 7/32 in insert seat size 0.9 Nm torque ANSI Code: 570-STFCL-16-09 ISO Code: 570-STFCL-16-09
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 570-STFCL-16-09 |
| Catalog Number | 5764405 |
| Center to Cutting Height | 400 |
| Country of Origin | NO |
| Finish | CoroTurn® 107 |
| Gross Weight Per Pack | 0.0700 lb |
| Head Length|Projection | SL, Screw Mounted |
| Insert Style | 570-STFCR/L |
| Item Group | 410 |
| Material | Steel |
| Overall Length | 0.8661 in |
| Series | CoroTurn® 107 |
| Type | SL Screw Mounted |
| UPC 11 | 69826229720 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 0.433 in |
| Cutting Direction | Left Hand |
| Insert Compatibility | TCMT 090204 |
| Insert Holding Method | Steel |
| Number of Inserts | 11 mm |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric entry |
| 40 - 60 deg insert screw clamping |
| Axial inclined exit |
| 16 mm Dia connection |
| 20 mm Dia minimum bore |
| 0 deg rake orthogonal |
| 91 deg cutting edge |
| -6 deg inclination |
| 20 mm L functional |
| -1 deg lead |
| 0 deg ramping |
| T insert shape |
| 7/32 in insert seat size |
| 0.9 Nm torque |
| ANSI Code: 570-STFCL-16-09 |
| ISO Code: 570-STFCL-16-09 |
