Sandvik Coromant 5762094 CoroMill® 490 Square Shoulder Milling Cutter, 490..Axx Insert, 1.2598 in Cutting, Right Hand, 0.2165 in Max Depth of Cut

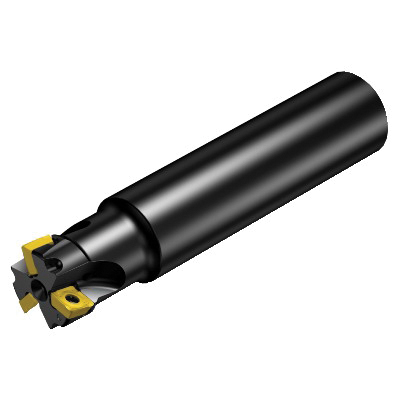

Custom_Product_Images_Illustration
Sandvik Coromant 5762094 CoroMill® 490 Square Shoulder Milling Cutter, 490..Axx Insert, 1.2598 in Cutting, Right Hand, 0.2165 in Max Depth of Cut
SKU1240155
MFGR #5762094
Your Cost: $698.05/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 490, 1.2598 in Cutting Dia, 4.7244 in Overall Length, 0.2165 in Maximum Depth of Cut, 490..Axx Insert, 3 Inserts, Insert Compatibility: 490R-08T308.., 0.9842 in Shank Dia, Right Hand Cutting, ANSI Code: 490-032A25-08L, ISO Code: 490-032A25-08L, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 490, 1.2598 in Cutting Dia, 4.7244 in Overall Length, 0.2165 in Maximum Depth of Cut, 490..Axx Insert, 3 Inserts, Insert Compatibility: 490R-08T308.., 0.9842 in Shank Dia, Right Hand Cutting, ANSI Code: 490-032A25-08L, ISO Code: 490-032A25-08L, Steel
Alternate Catalog Number 490-032A25-08L ANSI Code 490-032A25-08L Catalog Number 5762094 Country of Origin SE Gross Weight Per Pack 1.2100 lb ISO Code 490-032A25-08L Item Group 455 Lead Angle 90 ° Material Steel Series CoroMill® 490 UPC 11 69826245156 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 1.2598 in Cutting Direction Right Hand Insert Compatibility 490R-08T308 Insert Style 490..Axx Maximum Depth of Cut 0.2165 in Number of Inserts 3 Overall Length 4.7244 in Shank Diameter 0.9842 in Shank Type Cylindrical Through Coolant Yes Axial concentric coolant entry 10 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 32 mm Dia maximum cutting 90 deg cutting edge 64 mm overhang 0 deg maximum ramping 33900 r/min cutting feed 1.2 Nm torque 20 life cycle state 1 maximum working engagement ratio Cylindrical shank adaptive interface without clamping features
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 490-032A25-08L |
| ANSI Code | 490-032A25-08L |
| Catalog Number | 5762094 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.2100 lb |
| ISO Code | 490-032A25-08L |
| Item Group | 455 |
| Lead Angle | 90 ° |
| Material | Steel |
| Series | CoroMill® 490 |
| UPC 11 | 69826245156 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 1.2598 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 490R-08T308 |
| Insert Style | 490..Axx |
| Maximum Depth of Cut | 0.2165 in |
| Number of Inserts | 3 |
| Overall Length | 4.7244 in |
| Shank Diameter | 0.9842 in |
| Shank Type | Cylindrical |
| Through Coolant | Yes |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 32 mm Dia maximum cutting |
| 90 deg cutting edge |
| 64 mm overhang |
| 0 deg maximum ramping |
| 33900 r/min cutting feed |
| 1.2 Nm torque |
| 20 life cycle state |
| 1 maximum working engagement ratio |
| Cylindrical shank adaptive interface without clamping features |
