Sandvik Coromant

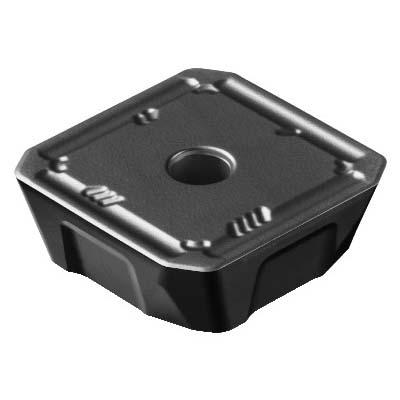

Sandvik Coromant 5759030 CoroMill® 360 Milling Insert, 360L-28 07M-KH 3040, S-Square, 360R/L..M-KH Insert, Carbide, 3040, 360L-28 07M-KH 3040
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5759030 CoroMill® 360 Milling Insert, 360L-28 07M-KH 3040, S-Square, 360R/L..M-KH Insert, Carbide, 3040, 360L-28 07M-KH 3040
SKU1242132
MFGR #5759030
Your Cost: $64.84/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 360, 360R/L..M-KH Insert, S-Square, 0.3346 in Inscribed Circle, 5/16 in Thickness, 1.1208 in Length, KH Chipbreaker, 0.0669 in Corner Radius, 0 deg Rake, 90 deg Lead Angle, 0.1496 in Hole Dia, Manufacturer's Grade: 3040, ANSI Code: 360L-28 07M-KH 3040, ISO Code: 360L-28 07M-KH 3040, Left Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Milling Insert, Series: CoroMill® 360, 360R/L..M-KH Insert, S-Square, 0.3346 in Inscribed Circle, 5/16 in Thickness, 1.1208 in Length, KH Chipbreaker, 0.0669 in Corner Radius, 0 deg Rake, 90 deg Lead Angle, 0.1496 in Hole Dia, Manufacturer's Grade: 3040, ANSI Code: 360L-28 07M-KH 3040, ISO Code: 360L-28 07M-KH 3040, Left Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number 360L-2807M-KH 3040 ANSI Code 360L-2807M-KH 3040 Catalog Number 5759030 Corner Radius 0.067 in Country of Origin SE Finish MTCVD-TiCN+Al2O3 Coated Gross Weight Per Pack 0.9600 lb Hand of Insert Left Hole Diameter 0.1496 in ISO Code 360L-2807M-KH 3040 Item Group 350 Lead Angle 60 ° Length 1.121 in Material Application Cast Iron Series CoroMill® 360 Thickness 5/16 in UPC 11 69826249618 Width 1.121 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KH Inscribed Circle 1.121 in Insert Size 2807 Insert Style 360R/L..M-KH Manufacturer's Grade 3040 Material Carbide Material Grade K Shape Square Flat surface clamping interface 18 mm D cutting 4.6 mm L wiper edge 200 mm wiper edge radius 90 deg included 60 deg major cutting edge 20 mm L effective cutting edge 1-side cutting 20 life cycle state 4 corner S cutting edge condition 4 cutting edge Without fixing hole mounting 0.3 to 0.69 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 360L-2807M-KH 3040 |
| ANSI Code | 360L-2807M-KH 3040 |
| Catalog Number | 5759030 |
| Corner Radius | 0.067 in |
| Country of Origin | SE |
| Finish | MTCVD-TiCN+Al2O3 Coated |
| Gross Weight Per Pack | 0.9600 lb |
| Hand of Insert | Left |
| Hole Diameter | 0.1496 in |
| ISO Code | 360L-2807M-KH 3040 |
| Item Group | 350 |
| Lead Angle | 60 ° |
| Length | 1.121 in |
| Material Application | Cast Iron |
| Series | CoroMill® 360 |
| Thickness | 5/16 in |
| UPC 11 | 69826249618 |
| Width | 1.121 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KH |
| Inscribed Circle | 1.121 in |
| Insert Size | 2807 |
| Insert Style | 360R/L..M-KH |
| Manufacturer's Grade | 3040 |
| Material | Carbide |
| Material Grade | K |
| Shape | Square |
| Flat surface clamping interface |
| 18 mm D cutting |
| 4.6 mm L wiper edge |
| 200 mm wiper edge radius |
| 90 deg included |
| 60 deg major cutting edge |
| 20 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| S cutting edge condition |
| 4 cutting edge |
| Without fixing hole mounting |
| 0.3 to 0.69 mm/r cutting feed |
