Sandvik Coromant

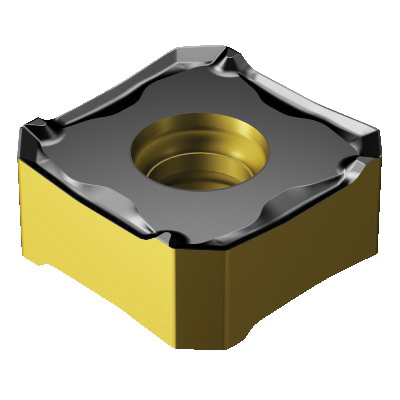

Sandvik Coromant 5758913 CoroMill® 345 Milling Insert, 345R-1305M-PL 4240 ANSI, S-Square, 345R/L..M-PL Insert, Carbide, 4240
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5758913 CoroMill® 345 Milling Insert, 345R-1305M-PL 4240 ANSI, S-Square, 345R/L..M-PL Insert, Carbide, 4240
SKU1242085
MFGR #5758913
Your Cost: $21.33/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 345, 345R/L..M-PL Insert, S-Square, 0.5118 in Inscribed Circle, 0.2204 in Thickness, 0.5118 in Length, PL Chipbreaker, 0.0314 in Corner Radius, 30 deg Negative Rake, 45 deg Lead Angle, 0.1889 in Hole Dia, Manufacturer's Grade: 4240, ANSI Code: 345R-1305M-PL 4240, ISO Code: 345R-1305M-PL 4240, Right Hand, Carbide, MTCVD Coated, Material Grade: M/P
Sandvik Coromant Milling Insert, Series: CoroMill® 345, 345R/L..M-PL Insert, S-Square, 0.5118 in Inscribed Circle, 0.2204 in Thickness, 0.5118 in Length, PL Chipbreaker, 0.0314 in Corner Radius, 30 deg Negative Rake, 45 deg Lead Angle, 0.1889 in Hole Dia, Manufacturer's Grade: 4240, ANSI Code: 345R-1305M-PL 4240, ISO Code: 345R-1305M-PL 4240, Right Hand, Carbide, MTCVD Coated, Material Grade: M/P
ANSI Code 345R-1305M-PL 4240 Catalog Number 5758913 Corner Radius 0.031 in Country of Origin JP Finish MTCVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2200 lb Hand of Insert Right Hole Diameter 0.189 in ISO Code 345R-1305M-PL 4240 Lead Angle 45 ° Length 0.512 in Material Application Steel and Stainless Steel Series CoroMill® 345 Thickness 0.199 in UPC 11 69826247590 Width 0.512 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PL Inscribed Circle 0.512 in Insert Size 1305 Insert Style 345R/L..M-PL Manufacturer's Grade 4240 Material Carbide Material Grade M, P Shape Square 40 to 60 deg countersunk hole and non-flat surface clamping interface 0 deg clearance 6 mm D cutting 2 mm L wiper edge 107 mm wiper edge radius 90 deg included 45 deg major cutting edge 8.8 mm L effective cutting edge 2-side cutting 20 life cycle state 4 corner T cutting edge condition 8 cutting edge Screw clamp mounting 0.07 to 0.21 mm/r cutting feed
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | 345R-1305M-PL 4240 |
| Catalog Number | 5758913 |
| Corner Radius | 0.031 in |
| Country of Origin | JP |
| Finish | MTCVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2200 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.189 in |
| ISO Code | 345R-1305M-PL 4240 |
| Lead Angle | 45 ° |
| Length | 0.512 in |
| Material Application | Steel and Stainless Steel |
| Series | CoroMill® 345 |
| Thickness | 0.199 in |
| UPC 11 | 69826247590 |
| Width | 0.512 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PL |
| Inscribed Circle | 0.512 in |
| Insert Size | 1305 |
| Insert Style | 345R/L..M-PL |
| Manufacturer's Grade | 4240 |
| Material | Carbide |
| Material Grade | M, P |
| Shape | Square |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 0 deg clearance |
| 6 mm D cutting |
| 2 mm L wiper edge |
| 107 mm wiper edge radius |
| 90 deg included |
| 45 deg major cutting edge |
| 8.8 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 4 corner |
| T cutting edge condition |
| 8 cutting edge |
| Screw clamp mounting |
| 0.07 to 0.21 mm/r cutting feed |
