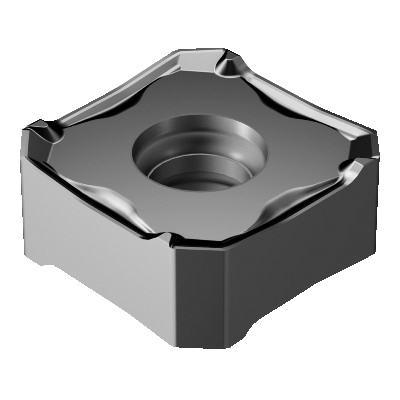

Sandvik Coromant 5758904 CoroMill® 345 Milling Insert, 345R-1305M-PH 3040 ANSI, S-Square, 345R/L..M-PH Insert, Carbide, 3040
Custom_Product_Images_Illustration
Sandvik Coromant 5758904 CoroMill® 345 Milling Insert, 345R-1305M-PH 3040 ANSI, S-Square, 345R/L..M-PH Insert, Carbide, 3040
SKU1242294
MFGR #5758904
Your Cost: $28.03/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 345, 345R/L..M-PH Insert, S-Square, 0.5118 in Inscribed Circle, 0.2204 in Thickness, 0.5118 in Length, PH Chipbreaker, 0.0314 in Corner Radius, 19 deg Negative Rake, 90 deg Lead Angle, 0.1889 in Hole Dia, Manufacturer's Grade: 3040, ANSI Code: 345R-1305M-PH 3040, ISO Code: 345R-1305M-PH 3040, Right Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Milling Insert, Series: CoroMill® 345, 345R/L..M-PH Insert, S-Square, 0.5118 in Inscribed Circle, 0.2204 in Thickness, 0.5118 in Length, PH Chipbreaker, 0.0314 in Corner Radius, 19 deg Negative Rake, 90 deg Lead Angle, 0.1889 in Hole Dia, Manufacturer's Grade: 3040, ANSI Code: 345R-1305M-PH 3040, ISO Code: 345R-1305M-PH 3040, Right Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number 345R-1305M-PH 3040 ANSI Code 345R-1305M-PH 3040 Catalog Number 5758904 Corner Radius 0.031 in Country of Origin SE Finish MTCVD-TiCN+Al2O3 Coated Gross Weight Per Pack 0.2500 lb Hand of Insert Right Hole Diameter 0.189 in ISO Code 345R-1305M-PH 3040 Item Group 355 Lead Angle 45 ° Length 0.512 in Material Application Cast Iron Series CoroMill® 345 Thickness 0.199 in UPC 11 69826249608 Width 0.512 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PH Inscribed Circle 0.512 in Insert Size 1305 Insert Style 345R/L..M-PH Manufacturer's Grade 3040 Material Carbide Material Grade K Shape Square 40 to 60 deg countersunk hole and non-flat surface clamping interface 0 deg clearance 6 mm D cutting 2 mm L wiper edge 107 mm wiper edge radius 90 deg included 45 deg major cutting edge 8.8 mm L effective cutting edge 2-side cutting 20 life cycle state 4 corner T cutting edge condition 8 cutting edge Screw clamp mounting 0.35 to 0.55 mm/r cutting feed
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 345R-1305M-PH 3040 |
| ANSI Code | 345R-1305M-PH 3040 |
| Catalog Number | 5758904 |
| Corner Radius | 0.031 in |
| Country of Origin | SE |
| Finish | MTCVD-TiCN+Al2O3 Coated |
| Gross Weight Per Pack | 0.2500 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.189 in |
| ISO Code | 345R-1305M-PH 3040 |
| Item Group | 355 |
| Lead Angle | 45 ° |
| Length | 0.512 in |
| Material Application | Cast Iron |
| Series | CoroMill® 345 |
| Thickness | 0.199 in |
| UPC 11 | 69826249608 |
| Width | 0.512 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PH |
| Inscribed Circle | 0.512 in |
| Insert Size | 1305 |
| Insert Style | 345R/L..M-PH |
| Manufacturer's Grade | 3040 |
| Material | Carbide |
| Material Grade | K |
| Shape | Square |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 0 deg clearance |
| 6 mm D cutting |
| 2 mm L wiper edge |
| 107 mm wiper edge radius |
| 90 deg included |
| 45 deg major cutting edge |
| 8.8 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 4 corner |
| T cutting edge condition |
| 8 cutting edge |
| Screw clamp mounting |
| 0.35 to 0.55 mm/r cutting feed |
