Sandvik Coromant

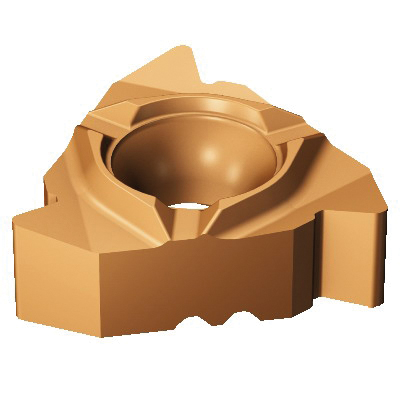

Sandvik Coromant 5757940 CoroThread® 266 Threading Insert, 266RL-16VW01A002M 1125, T-Triangle, 266RL..VW..A Insert, 8 to 14, Internal Thread, 266RL-16VW01A002M 1125
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5757940 CoroThread® 266 Threading Insert, 266RL-16VW01A002M 1125, T-Triangle, 266RL..VW..A Insert, 8 to 14, Internal Thread, 266RL-16VW01A002M 1125
SKU1231495
MFGR #5757940
Your Cost: $38.87/ea
List: Sandvik Coromant Threading Insert, Series: CoroThread® 266, 266RL..VW..A Insert, 16 Insert, T-Triangle, Internal, 8 to 14, 3/8 in Inscribed Circle, 0.1562 in Thickness, ANSI Code: 266RL-16VW01A002M 1125, ISO Code: 266RL-16VW01A002M 1125, A Chipbreaker, Negative Rake, 0.009 in Corner Radius, 60 deg Included Angle, Manufacturer's Grade: 1125, Right Hand, Carbide, PVD Coated, Material Grade: K/M/N/P/S
Sandvik Coromant Threading Insert, Series: CoroThread® 266, 266RL..VW..A Insert, 16 Insert, T-Triangle, Internal, 8 to 14, 3/8 in Inscribed Circle, 0.1562 in Thickness, ANSI Code: 266RL-16VW01A002M 1125, ISO Code: 266RL-16VW01A002M 1125, A Chipbreaker, Negative Rake, 0.009 in Corner Radius, 60 deg Included Angle, Manufacturer's Grade: 1125, Right Hand, Carbide, PVD Coated, Material Grade: K/M/N/P/S
Alternate Catalog Number 266RL-16VW01A002M 1125 ANSI Code 266RL-16VW01A002M 1125 Catalog Number 5757940 Corner Radius 0.009 in Country of Origin SE Finish PVD Coated Gross Weight Per Pack 1 lb Hand of Insert Right Included Angle 60 deg ISO Code 266RL-16VW01A002M 1125 Item Group 330 Length 9.525 mm Pitch 266RL-16VW01A002M 1125 Series CoroThread® 266 Thickness 0.1562 in Type Internal UPC 11 69826249497 Width 8 to 14 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker A Cutting Direction Right Hand Inscribed Circle 3/8 in Insert Size 16 Insert Style 266RL..VW..A Manufacturer's Grade 1125 Material CARBIDE Material Grade K/M/N/P/S Rake Negative Shape T-Triangle Thread Type Internal Thread Standard 55 deg Partial Profile Threads Per Inch 8 to 14 0 deg clearance 20 life cycle state 40 - 60 deg countersunk hole, rail bottom and non-flat surface 4.4 mm Dia fixing hole 2.80 mm H theoretical thread 0.25 mm H difference thread 8 mounting style code 1 tooth count 1.5 mm profile distance 1.01 mm profile distance VP55 thread form Internal lay down insert x screw clamp mounting 3 edges 3/8 insert seat size code
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 266RL-16VW01A002M 1125 |
| ANSI Code | 266RL-16VW01A002M 1125 |
| Catalog Number | 5757940 |
| Corner Radius | 0.009 in |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Right |
| Included Angle | 60 deg |
| ISO Code | 266RL-16VW01A002M 1125 |
| Item Group | 330 |
| Length | 9.525 mm |
| Pitch | 266RL-16VW01A002M 1125 |
| Series | CoroThread® 266 |
| Thickness | 0.1562 in |
| Type | Internal |
| UPC 11 | 69826249497 |
| Width | 8 to 14 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | A |
| Cutting Direction | Right Hand |
| Inscribed Circle | 3/8 in |
| Insert Size | 16 |
| Insert Style | 266RL..VW..A |
| Manufacturer's Grade | 1125 |
| Material | CARBIDE |
| Material Grade | K/M/N/P/S |
| Rake | Negative |
| Shape | T-Triangle |
| Thread Type | Internal |
| Thread Standard | 55 deg Partial Profile |
| Threads Per Inch | 8 to 14 |
| 0 deg clearance |
| 20 life cycle state |
| 40 - 60 deg countersunk hole, rail bottom and non-flat surface |
| 4.4 mm Dia fixing hole |
| 2.80 mm H theoretical thread |
| 0.25 mm H difference thread |
| 8 mounting style code |
| 1 tooth count |
| 1.5 mm profile distance |
| 1.01 mm profile distance |
| VP55 thread form |
| Internal lay down insert x screw clamp mounting |
| 3 edges |
| 3/8 insert seat size code |
