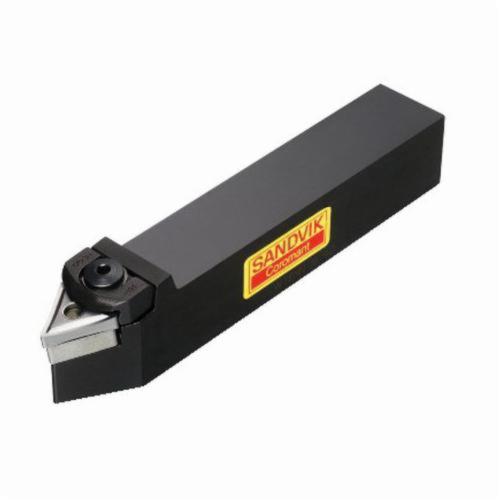

Sandvik Coromant 5756889 T-Max P Shank Tool, WTENN Tool Holder, TNMG 270612 (MIIDM) and TNMG 543 (MIIDN) Insert, 30 deg Lead, Rectangle Shank, Neutral
Custom_Product_Images_Illustration
Sandvik Coromant 5756889 T-Max P Shank Tool, WTENN Tool Holder, TNMG 270612 (MIIDM) and TNMG 543 (MIIDN) Insert, 30 deg Lead, Rectangle Shank, Neutral
SKU1229688
MFGR #5756889
Your Cost: $182.45/ea
Sandvik Coromant Shank Tool, Series: T-Max P, WTENN Tool Holder, 6 in Overall Length, Rectangle Shank, 1-1/4 in H x 1-1/4 in W Shank, Insert Compatibility: TNMG 270612 (MIIDM) and TNMG 543 (MIIDN), 5/8 Insert Seat, Neutral Cutting, 30 deg Lead Angle, ANSI Code: WTENN 20 5D, ISO Code: WTENN 20 5D, -8 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: T-Max P, WTENN Tool Holder, 6 in Overall Length, Rectangle Shank, 1-1/4 in H x 1-1/4 in W Shank, Insert Compatibility: TNMG 270612 (MIIDM) and TNMG 543 (MIIDN), 5/8 Insert Seat, Neutral Cutting, 30 deg Lead Angle, ANSI Code: WTENN 20 5D, ISO Code: WTENN 20 5D, -8 deg Rake, Steel
ANSI Code WTENN 20 5D Back of Bar to Cutting Edge WTENN 20 5D Catalog Number 5756889 Country of Origin IN Gross Weight Per Pack 2.6400 lb Head Length -8 deg Inscribed Circle 30 deg Insert Seat Size 5/8 ISO Code WTENN 20 5D Material Steel Series T-Max P Shank Type Rectangle Type Indexable Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Neutral Insert Compatibility TNMG 270612 (MIIDM) and TNMG 543 (MIIDN) Lead Angle 30 deg Overall Length 6 in Rake -8 deg Shank Size 1-1/4 in H x 1-1/4 in W Tool Holder Style WTENN 0 deg body machine side 0 deg body workpiece side Without coolant entry No coolant exit 0 deg inclination 60 deg cutting edge 55 deg maximum ramping 20 life cycle state 44.45 mm maximum overhang 5 Nm torque 15.875 mm W functional Wedge and hole clamping T - Triangle insert ANSI Code: WTENN 20 5D ISO Code: WTENN 20 5D
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | WTENN 20 5D |
| Back of Bar to Cutting Edge | WTENN 20 5D |
| Catalog Number | 5756889 |
| Country of Origin | IN |
| Gross Weight Per Pack | 2.6400 lb |
| Head Length | -8 deg |
| Inscribed Circle | 30 deg |
| Insert Seat Size | 5/8 |
| ISO Code | WTENN 20 5D |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| Type | Indexable |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Neutral |
| Insert Compatibility | TNMG 270612 (MIIDM) and TNMG 543 (MIIDN) |
| Lead Angle | 30 deg |
| Overall Length | 6 in |
| Rake | -8 deg |
| Shank Size | 1-1/4 in H x 1-1/4 in W |
| Tool Holder Style | WTENN |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 60 deg cutting edge |
| 55 deg maximum ramping |
| 20 life cycle state |
| 44.45 mm maximum overhang |
| 5 Nm torque |
| 15.875 mm W functional |
| Wedge and hole clamping |
| T - Triangle insert |
| ANSI Code: WTENN 20 5D |
| ISO Code: WTENN 20 5D |
