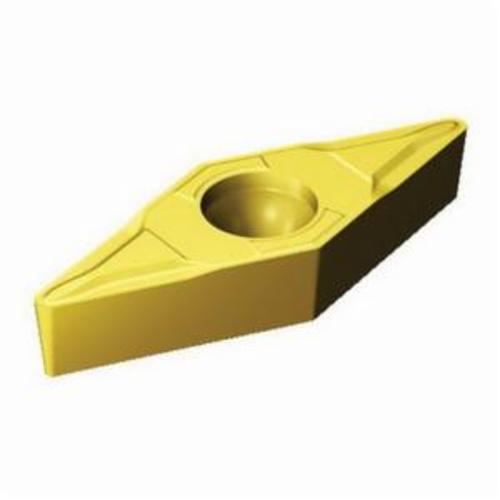

Sandvik Coromant 5755516 CoroTurn® 107 1-Sided Turning Insert, VBMT 220-MF 1025, V-35 deg Diamond, VBMT-MF Insert, 1025
Custom_Product_Images_Illustration
Sandvik Coromant 5755516 CoroTurn® 107 1-Sided Turning Insert, VBMT 220-MF 1025, V-35 deg Diamond, VBMT-MF Insert, 1025
SKU80309
MFGR #5755516
Your Cost: $16.71/ea
List: Sandvik Coromant Turning Insert, 1-Sided, Series: CoroTurn® 107, VBMT-MF Insert, V-35 deg Diamond, 0.3 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 1/8 in Thickness, 0.4358 in Length, MF Chipbreaker, 0.0078 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 1025, ANSI Code: VBMT 220-MF 1025, ISO Code: VBMT 11 03 02-MF 1025, 35 deg Included Angle, 5 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Sandvik Coromant Turning Insert, 1-Sided, Series: CoroTurn® 107, VBMT-MF Insert, V-35 deg Diamond, 0.3 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 1/8 in Thickness, 0.4358 in Length, MF Chipbreaker, 0.0078 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 1025, ANSI Code: VBMT 220-MF 1025, ISO Code: VBMT 11 03 02-MF 1025, 35 deg Included Angle, 5 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
ANSI Code VBMT 220-MF 1025 Catalog Number 5755516 Corner Radius 0.0078 in Country of Origin SE Finish PVD Coated Gross Weight Per Pack 1 lb Hand of Insert Neutral Hole Diameter 0.1102 in Included Angle 35 deg ISO Code VBMT 11 03 02-MF 1025 Length 0.4358 in Relief Angle 5 deg Series CoroTurn® 107 Thickness 1/8 in Type 1-Sided UPC 11 69826212458 UPC 12 69826212458 Width 3.175 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Chipbreaker MF Inscribed Circle 1/4 in Insert Size Neutral Insert Style VBMT-MF Manufacturer's Grade 1025 Material Carbide Material Grade M/S Maximum Depth of Cut 0.3 mm Shape V-35 deg Diamond 5 deg major clearance E cutting edge condition 2 cutting edges 40 - 60 deg countersunk hole and non-flat surface clamping interface 10.87 mm L effective cutting edge M tolerance class 0.03 - 0.13 mm/r cutting feed 30 life cycle state Sharp cutting edges and excellent chip control ensure a soft cutting action and low cutting forces, providing an excellent surface finish to the component 7 deg clearance angle Screw clamping ensures stability and unobstructed chip flow Holders and insert geometries with conventional and CoroTurn HP design For longitudinal turning and profiling Positive rake Screw clamp mount
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | VBMT 220-MF 1025 |
| Catalog Number | 5755516 |
| Corner Radius | 0.0078 in |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.1102 in |
| Included Angle | 35 deg |
| ISO Code | VBMT 11 03 02-MF 1025 |
| Length | 0.4358 in |
| Relief Angle | 5 deg |
| Series | CoroTurn® 107 |
| Thickness | 1/8 in |
| Type | 1-Sided |
| UPC 11 | 69826212458 |
| UPC 12 | 69826212458 |
| Width | 3.175 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Chipbreaker | MF |
| Inscribed Circle | 1/4 in |
| Insert Size | Neutral |
| Insert Style | VBMT-MF |
| Manufacturer's Grade | 1025 |
| Material | Carbide |
| Material Grade | M/S |
| Maximum Depth of Cut | 0.3 mm |
| Shape | V-35 deg Diamond |
| 5 deg major clearance |
| E cutting edge condition |
| 2 cutting edges |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 10.87 mm L effective cutting edge |
| M tolerance class |
| 0.03 - 0.13 mm/r cutting feed |
| 30 life cycle state |
| Sharp cutting edges and excellent chip control ensure a soft cutting action and low cutting forces, providing an excellent surface finish to the component |
| 7 deg clearance angle |
| Screw clamping ensures stability and unobstructed chip flow |
| Holders and insert geometries with conventional and CoroTurn HP design |
| For longitudinal turning and profiling |
| Positive rake |
| Screw clamp mount |
