Sandvik Coromant

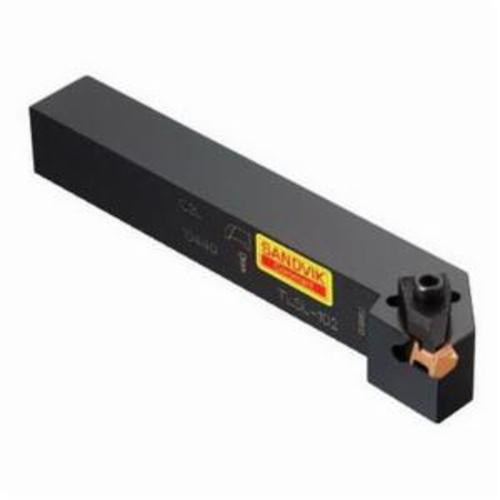

Sandvik Coromant 5753601 Top-Lok® Shank Tool, TLG-3189L insert, 3 Insert Seat, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5753601 Top-Lok® Shank Tool, TLG-3189L insert, 3 Insert Seat, Left Hand
SKU348973
MFGR #5753601
Your Cost: $305.86/ea
Sandvik Coromant Shank Tool, Series: Top-Lok®, Insert Compatibility: TLG-3189L, TLSL-163D, 6 in Overall Length, Rectangular Shank, 1 in H x 1 in W Shank, 3 Insert Seat, Left Hand Cutting, 0.18 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Series: Top-Lok®, Insert Compatibility: TLG-3189L, TLSL-163D, 6 in Overall Length, Rectangular Shank, 1 in H x 1 in W Shank, 3 Insert Seat, Left Hand Cutting, 0.18 in Maximum Depth of Cut, Steel
Alternate Catalog Number TLSL-163D Catalog Number 5753601 Country of Origin IN Gross Weight Per Pack 1.7600 lb Head Length 1.3 in Internal or External External Item Group 415 Material Steel Series Top-Lok® Toolholder Style TLSR/L Toolholder Type TLSR/L UPC 11 69826285038 UPC 12 69826285038 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type Screw Cutting Direction Left Hand Insert Compatibility TLG 3L Insert Seat Size #3 Maximum Depth of Cut 0.18 in Overall Length 6 in Shank Size 1 in H x 1 in W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Without coolant entry No coolant exit 0 deg rake orthogonal 90 deg cutting edge 0 deg inclination 33.02 mm overhang TLSR/L tool style 1/4 in W functiona ANSI Code: TLSL-163D ISO Code: TLSL-163D
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | TLSL-163D |
| Catalog Number | 5753601 |
| Country of Origin | IN |
| Gross Weight Per Pack | 1.7600 lb |
| Head Length | 1.3 in |
| Internal or External | External |
| Item Group | 415 |
| Material | Steel |
| Series | Top-Lok® |
| Toolholder Style | TLSR/L |
| Toolholder Type | TLSR/L |
| UPC 11 | 69826285038 |
| UPC 12 | 69826285038 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | Screw |
| Cutting Direction | Left Hand |
| Insert Compatibility | TLG 3L |
| Insert Seat Size | #3 |
| Maximum Depth of Cut | 0.18 in |
| Overall Length | 6 in |
| Shank Size | 1 in H x 1 in W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Without coolant entry |
| No coolant exit |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 0 deg inclination |
| 33.02 mm overhang |
| TLSR/L tool style |
| 1/4 in W functiona |
| ANSI Code: TLSL-163D |
| ISO Code: TLSL-163D |
