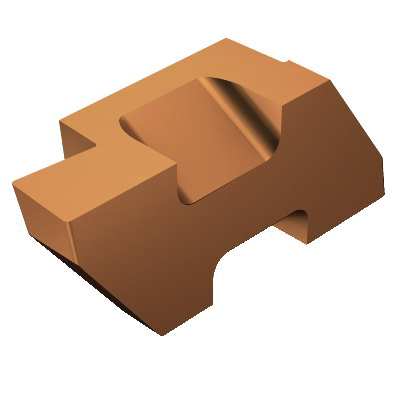

Sandvik Coromant 5753486 Top-Lok® Grooving Insert, TLG-3110L 1125, TLG Insert, 0.11 in W Cutting, 1125, TLG-3110L 1125
TLG Grooving Inserts
566570
MFG #: 5753486
Sandvik Coromant
48.71000
/ ea
Sandvik Coromant Grooving Insert, Series: Top-Lok®, TLG Insert, 0.11 in Cutting Width, 0.15 in Maximum Depth of Cut, 55 deg Lead Angle, 0.0124 in Corner Radius, Positive Rake, 0.344 in Thickness, 0.6338 in Length, Manufacturers Grade: 1125, ANSI Code: TLG-3110L 1125, ISO Code: TLG-3110L 1125, Left Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
- Features
| Multiply operations with the same holder by just changing insert|Double ended inserts provide high edge security|Interchangeable with similar clamping systems by changing the top clamp and screw |
| 20 life cycle state |
| 0 deg body machine side |
| -0.0254 mm W cutting lower tolerance |
| 0.0254 mm W cutting upper tolerance |
| Notch clamping |
| 4 deg cutting edge angle |
| E cutting edge condition |
| 1-side cutting |
| Top notch clamping mounting style |
| 2 edges |
| 5 insert mounting style code |
| 3 insert seat size code |
