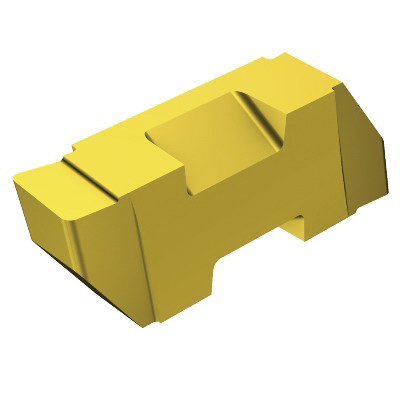

Sandvik Coromant 5753256 Top-Lok® Grooving Insert, TLGP-3047R 2135, TLGP Insert, 0.047 in W Cutting, 2135, TLGP-3047R 2135
Custom_Product_Images_Illustration
Sandvik Coromant 5753256 Top-Lok® Grooving Insert, TLGP-3047R 2135, TLGP Insert, 0.047 in W Cutting, 2135, TLGP-3047R 2135
SKU324013
MFGR #5753256
Your Cost: $44.25/ea
Sandvik Coromant Grooving Insert, Series: Top-Lok®, TLGP Insert, 0.047 in Cutting Width, 0.075 in Maximum Depth of Cut, 0 deg Lead Angle, 0.0075 in Corner Radius, Positive Rake, 0.344 in Thickness, 0.6338 in Length, Manufacturers Grade: 2135, ANSI Code: TLGP-3047R 2135, ISO Code: TLGP-3047R 2135, Right Hand, Carbide, MTCVD Coated, Material Grade: M/P
Sandvik Coromant Grooving Insert, Series: Top-Lok®, TLGP Insert, 0.047 in Cutting Width, 0.075 in Maximum Depth of Cut, 0 deg Lead Angle, 0.0075 in Corner Radius, Positive Rake, 0.344 in Thickness, 0.6338 in Length, Manufacturers Grade: 2135, ANSI Code: TLGP-3047R 2135, ISO Code: TLGP-3047R 2135, Right Hand, Carbide, MTCVD Coated, Material Grade: M/P
Alternate Catalog Number TLGP-3047R 2135 ANSI Code TLGP-3047R 2135 Catalog Number 5753256 Country of Origin US Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2600 lb ISO Code TLGP-3047R 2135 Item Group 315 Length 0.6338 in Material Grade M, P Series Top-Lok® Thickness 0.344 in UPC 11 69826211398 UPC 12 69826211398 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Corner Radius 0.008 in Cutting Direction Right Hand Cutting Width 0.0000 in Insert Size 3 Insert Style TLGP Lead Angle 0 ° Manufacturer's Grade 2135 Material Carbide Maximum Depth of Cut 0.075 in Rake Positive Multiply operations with the same holder by just changing insert|Double ended inserts provide high edge security|Interchangeable with similar clamping systems by changing the top clamp and screw 20 life cycle state 0 deg body machine side -0.0254 mm W cutting lower tolerance 0.0254 mm W cutting upper tolerance Notch clamping 4 deg cutting edge angle F cutting edge condition 1-side cutting Top notch clamping mounting style 2 edges 5 insert mounting style code 3 insert seat size code
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | TLGP-3047R 2135 |
| ANSI Code | TLGP-3047R 2135 |
| Catalog Number | 5753256 |
| Country of Origin | US |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2600 lb |
| ISO Code | TLGP-3047R 2135 |
| Item Group | 315 |
| Length | 0.6338 in |
| Material Grade | M, P |
| Series | Top-Lok® |
| Thickness | 0.344 in |
| UPC 11 | 69826211398 |
| UPC 12 | 69826211398 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Corner Radius | 0.008 in |
| Cutting Direction | Right Hand |
| Cutting Width | 0.0000 in |
| Insert Size | 3 |
| Insert Style | TLGP |
| Lead Angle | 0 ° |
| Manufacturer's Grade | 2135 |
| Material | Carbide |
| Maximum Depth of Cut | 0.075 in |
| Rake | Positive |
| Multiply operations with the same holder by just changing insert|Double ended inserts provide high edge security|Interchangeable with similar clamping systems by changing the top clamp and screw |
| 20 life cycle state |
| 0 deg body machine side |
| -0.0254 mm W cutting lower tolerance |
| 0.0254 mm W cutting upper tolerance |
| Notch clamping |
| 4 deg cutting edge angle |
| F cutting edge condition |
| 1-side cutting |
| Top notch clamping mounting style |
| 2 edges |
| 5 insert mounting style code |
| 3 insert seat size code |
