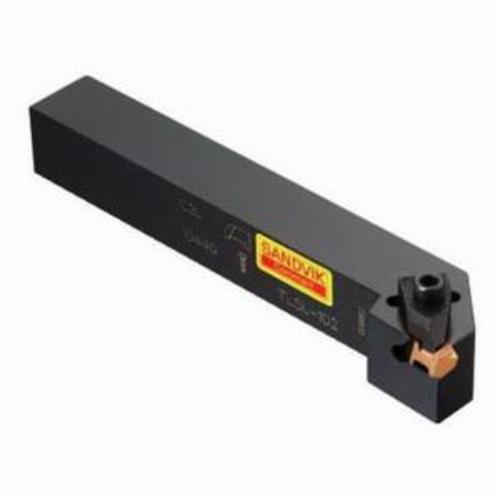

Sandvik Coromant 5753230 Top-Lok® Shank Tool, TLG-2125R insert, 2 Insert Seat, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5753230 Top-Lok® Shank Tool, TLG-2125R insert, 2 Insert Seat, Right Hand
SKU143991
MFGR #5753230
Your Cost: $273.59/ea
Sandvik Coromant Shank Tool, Series: Top-Lok®, Insert Compatibility: TLG-2125R, TLSR-122B, 4-1/2 in Overall Length, Rectangular Shank, 3/4 in H x 3/4 in W Shank, 2 Insert Seat, Right Hand Cutting, 1/8 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Series: Top-Lok®, Insert Compatibility: TLG-2125R, TLSR-122B, 4-1/2 in Overall Length, Rectangular Shank, 3/4 in H x 3/4 in W Shank, 2 Insert Seat, Right Hand Cutting, 1/8 in Maximum Depth of Cut, Steel
Alternate Catalog Number TLSR-122B Catalog Number 5753230 Country of Origin IN Gross Weight Per Pack 0.6200 lb Head Length 0.88 in Internal or External External Item Group 415 Material Steel Series Top-Lok® Toolholder Style TLSR/L UPC 11 69826285029 UPC 12 69826285029 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type Screw Cutting Direction Right Hand Insert Compatibility TLG 2R Insert Seat Size #2 Maximum Depth of Cut 1/8 in Overall Length 4-1/2 in Shank Size 3/4 in H x 3/4 in W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Without coolant entry No coolant exit 0 deg rake orthogonal 90 deg cutting edge 0 deg inclination 22.352 mm overhang TLSR/L tool style 1 in W functiona ANSI Code: TLSR-122B ISO Code: TLSR-122B
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | TLSR-122B |
| Catalog Number | 5753230 |
| Country of Origin | IN |
| Gross Weight Per Pack | 0.6200 lb |
| Head Length | 0.88 in |
| Internal or External | External |
| Item Group | 415 |
| Material | Steel |
| Series | Top-Lok® |
| Toolholder Style | TLSR/L |
| UPC 11 | 69826285029 |
| UPC 12 | 69826285029 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | Screw |
| Cutting Direction | Right Hand |
| Insert Compatibility | TLG 2R |
| Insert Seat Size | #2 |
| Maximum Depth of Cut | 1/8 in |
| Overall Length | 4-1/2 in |
| Shank Size | 3/4 in H x 3/4 in W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Without coolant entry |
| No coolant exit |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 0 deg inclination |
| 22.352 mm overhang |
| TLSR/L tool style |
| 1 in W functiona |
| ANSI Code: TLSR-122B |
| ISO Code: TLSR-122B |
