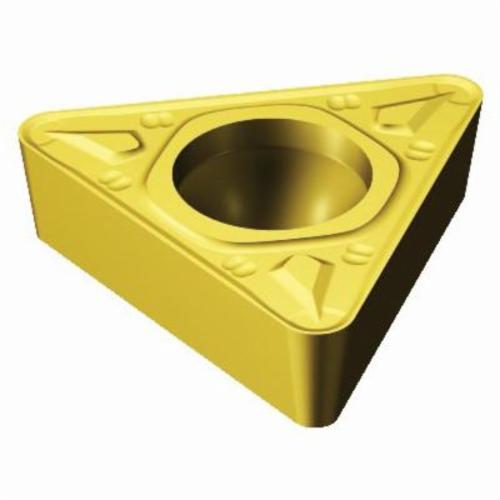

Sandvik Coromant 5752877 CoroTurn® 107 Basic Shape Positive Turning Insert, TCMT 433-MR 2035, T-Triangle, TCMT Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5752877 CoroTurn® 107 Basic Shape Positive Turning Insert, TCMT 433-MR 2035, T-Triangle, TCMT Insert
SKU1161953
MFGR #5752877
Your Cost: $23.14/ea
List: Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, TCMT Insert, T-Triangle, 4.8 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.866 in Length, MR Chipbreaker, 0.0468 in Corner Radius, 0.2165 in Hole Dia, Manufacturer's Grade: 2035, ANSI Code: TCMT 433-MR 2035, ISO Code: TCMT 22 04 12-MR 2035, 60 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, TCMT Insert, T-Triangle, 4.8 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.866 in Length, MR Chipbreaker, 0.0468 in Corner Radius, 0.2165 in Hole Dia, Manufacturer's Grade: 2035, ANSI Code: TCMT 433-MR 2035, ISO Code: TCMT 22 04 12-MR 2035, 60 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M
Alternate Catalog Number TCMT 433-MR 2035 ANSI Code TCMT 433-MR 2035 Catalog Number 5752877 Corner Radius 0.047 in Country of Origin SE Finish PVD-TiAlN+TiN Coated Gross Weight Per Pack 0.2800 lb Hole Diameter 0.2165 in Included Angle 60 ° ISO Code TCMT 22 04 12-MR 2035 Item Group 120 Relief Angle 7 ° Series CoroTurn® 107 Thickness 0.187 in UPC 11 69826212451 UPC 12 69826212451 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MR Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 1/2 in Insert Size 433 Insert Style TCMT Manufacturer's Grade 2035 Material Carbide Material Grade M Maximum Depth of Cut 4.8 mm Rake Positive Seat Size 22 Shape Triangle Ideal for long overhangs For unstable or thin-walled components Low cutting pressures Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times Mechanical post-treatment - unique residual stress rate, increased process reliability Large, universal chip breaking area and longer tool life for ISO P geometries Ground seating surface after coating for improved process reliability when working with interrupted cuts Silver flank face indicator layer for extremely easy wear detection Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation Extremely smooth rake face for excellent tribochemical wear resistance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | TCMT 433-MR 2035 |
| ANSI Code | TCMT 433-MR 2035 |
| Catalog Number | 5752877 |
| Corner Radius | 0.047 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN+TiN Coated |
| Gross Weight Per Pack | 0.2800 lb |
| Hole Diameter | 0.2165 in |
| Included Angle | 60 ° |
| ISO Code | TCMT 22 04 12-MR 2035 |
| Item Group | 120 |
| Relief Angle | 7 ° |
| Series | CoroTurn® 107 |
| Thickness | 0.187 in |
| UPC 11 | 69826212451 |
| UPC 12 | 69826212451 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MR |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | 433 |
| Insert Style | TCMT |
| Manufacturer's Grade | 2035 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 4.8 mm |
| Rake | Positive |
| Seat Size | 22 |
| Shape | Triangle |
| Ideal for long overhangs |
| For unstable or thin-walled components |
| Low cutting pressures |
| Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times |
| Mechanical post-treatment - unique residual stress rate, increased process reliability |
| Large, universal chip breaking area and longer tool life for ISO P geometries |
| Ground seating surface after coating for improved process reliability when working with interrupted cuts |
| Silver flank face indicator layer for extremely easy wear detection |
| Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation |
| Extremely smooth rake face for excellent tribochemical wear resistance |
