Sandvik Coromant 5751105 CoroTurn 107 Shank Tool, SRSCR/L Tool Holder, RCMT 120400 (MIIDM) and RCMT 43 (MIIDN) Insert

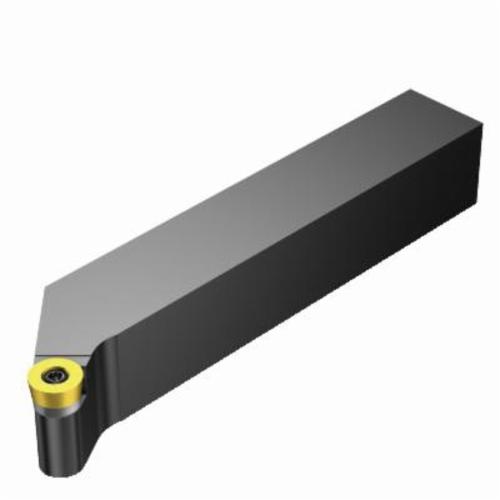

Custom_Product_Images_Illustration
Sandvik Coromant 5751105 CoroTurn 107 Shank Tool, SRSCR/L Tool Holder, RCMT 120400 (MIIDM) and RCMT 43 (MIIDN) Insert
SKU1240041
MFGR #5751105
Your Cost: $286.50/ea
Sandvik Coromant Shank Tool, Series: CoroTurn 107, SRSCR/L Tool Holder, 6 in Overall Length, Rectangle Shank, 1-1/4 in H x 1-1/4 in W Shank, Insert Compatibility: RCMT 120400 (MIIDM) and RCMT 43 (MIIDN), 1/2 Insert Seat, Left Hand Cutting, ANSI Code: SRSCL 20 4D, ISO Code: SRSCL 20 4D, 0 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: CoroTurn 107, SRSCR/L Tool Holder, 6 in Overall Length, Rectangle Shank, 1-1/4 in H x 1-1/4 in W Shank, Insert Compatibility: RCMT 120400 (MIIDM) and RCMT 43 (MIIDN), 1/2 Insert Seat, Left Hand Cutting, ANSI Code: SRSCL 20 4D, ISO Code: SRSCL 20 4D, 0 deg Rake, Steel
Alternate Catalog Number SRSCL 20 4D ANSI Code SRSCL 20 4D Catalog Number 5751105 Country of Origin IN Gross Weight Per Pack 2.2500 lb Insert Seat Size 1/2 ISO Code SRSCL 20 4D Item Group 210 Material Steel Series CoroTurn 107 Shank Type Rectangle UPC 11 69826236004 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility RCMT 120400 (MIIDM) and RCMT 43 (MIIDN) Overall Length 6 in Rake 0 deg Shank Size 1-1/4 in H x 1-1/4 in W Tool Holder Style SRSCR/L 0 deg body machine side 0 deg body workpiece side Without coolant entry No coolant exit 0 deg inclination 90 deg maximum ramping 20 life cycle state 36.73 mm maximum overhang 3.0 Nm torque 38.1 mm W functional 25.4 mm L usable 40 - 60 deg insert screw clamping R - Round insert ANSI Code: SRSCL 20 4D ISO Code: SRSCL 20 4D
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | SRSCL 20 4D |
| ANSI Code | SRSCL 20 4D |
| Catalog Number | 5751105 |
| Country of Origin | IN |
| Gross Weight Per Pack | 2.2500 lb |
| Insert Seat Size | 1/2 |
| ISO Code | SRSCL 20 4D |
| Item Group | 210 |
| Material | Steel |
| Series | CoroTurn 107 |
| Shank Type | Rectangle |
| UPC 11 | 69826236004 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | RCMT 120400 (MIIDM) and RCMT 43 (MIIDN) |
| Overall Length | 6 in |
| Rake | 0 deg |
| Shank Size | 1-1/4 in H x 1-1/4 in W |
| Tool Holder Style | SRSCR/L |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 90 deg maximum ramping |
| 20 life cycle state |
| 36.73 mm maximum overhang |
| 3.0 Nm torque |
| 38.1 mm W functional |
| 25.4 mm L usable |
| 40 - 60 deg insert screw clamping |
| R - Round insert |
| ANSI Code: SRSCL 20 4D |
| ISO Code: SRSCL 20 4D |
