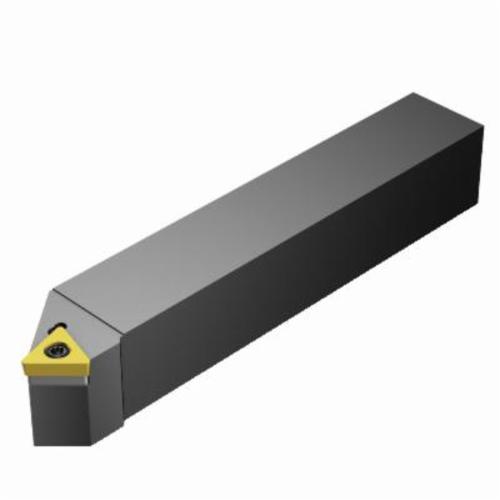

Sandvik Coromant 5751090 CoroTurn 107 Shank Tool, STDCR/L Tool Holder, TCMT 110304 (MIIDM) and TCMT 221 (MIIDN) Insert, 45 deg Lead, Rectangle Shank, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5751090 CoroTurn 107 Shank Tool, STDCR/L Tool Holder, TCMT 110304 (MIIDM) and TCMT 221 (MIIDN) Insert, 45 deg Lead, Rectangle Shank, Right Hand
SKU1233560
MFGR #5751090
Your Cost: $171.90/ea
Sandvik Coromant Shank Tool, Series: CoroTurn 107, STDCR/L Tool Holder, 2-1/2 in Overall Length, Rectangle Shank, 3/8 in H x 3/8 in W Shank, Insert Compatibility: TCMT 110304 (MIIDM) and TCMT 221 (MIIDN), 1/4 Insert Seat, Right Hand Cutting, 45 deg Lead Angle, ANSI Code: STDCR 062-B1, ISO Code: STDCR 062-B1, 0 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: CoroTurn 107, STDCR/L Tool Holder, 2-1/2 in Overall Length, Rectangle Shank, 3/8 in H x 3/8 in W Shank, Insert Compatibility: TCMT 110304 (MIIDM) and TCMT 221 (MIIDN), 1/4 Insert Seat, Right Hand Cutting, 45 deg Lead Angle, ANSI Code: STDCR 062-B1, ISO Code: STDCR 062-B1, 0 deg Rake, Steel
Alternate Catalog Number STDCR 062-B1 ANSI Code STDCR 062-B1 Back of Bar to Cutting Edge STDCR 062-B1 Catalog Number 5751090 Country of Origin IN Finish STDCR/L Gross Weight Per Pack 0.1800 lb Head Length 0 deg Includes Indexable Inscribed Circle 45 deg Insert Seat Size 1/4 ISO Code STDCR 062-B1 Item Group 210 Material Steel Series CoroTurn 107 Shank Type Rectangle Type 63.5 mm UPC 11 69826206012 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility TCMT 110304 (MIIDM) and TCMT 221 (MIIDN) Lead Angle 45 deg Overall Length 2-1/2 in Rake 0 deg Shank Size 3/8 in H x 3/8 in W Tool Holder Style STDCR/L 0 deg body machine side 0 deg body workpiece side Without coolant entry No coolant exit 0 deg inclination 45 deg cutting edge 45 deg maximum ramping 20 life cycle state 6.16 mm maximum overhang 0.9 Nm torque 5.66 - 12.7 mm W functional 40 - 60 deg insert screw clamping T - Triangle insert ANSI Code: STDCR 062-B1 ISO Code: STDCR 062-B1
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | STDCR 062-B1 |
| ANSI Code | STDCR 062-B1 |
| Back of Bar to Cutting Edge | STDCR 062-B1 |
| Catalog Number | 5751090 |
| Country of Origin | IN |
| Finish | STDCR/L |
| Gross Weight Per Pack | 0.1800 lb |
| Head Length | 0 deg |
| Includes | Indexable |
| Inscribed Circle | 45 deg |
| Insert Seat Size | 1/4 |
| ISO Code | STDCR 062-B1 |
| Item Group | 210 |
| Material | Steel |
| Series | CoroTurn 107 |
| Shank Type | Rectangle |
| Type | 63.5 mm |
| UPC 11 | 69826206012 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | TCMT 110304 (MIIDM) and TCMT 221 (MIIDN) |
| Lead Angle | 45 deg |
| Overall Length | 2-1/2 in |
| Rake | 0 deg |
| Shank Size | 3/8 in H x 3/8 in W |
| Tool Holder Style | STDCR/L |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 45 deg cutting edge |
| 45 deg maximum ramping |
| 20 life cycle state |
| 6.16 mm maximum overhang |
| 0.9 Nm torque |
| 5.66 - 12.7 mm W functional |
| 40 - 60 deg insert screw clamping |
| T - Triangle insert |
| ANSI Code: STDCR 062-B1 |
| ISO Code: STDCR 062-B1 |
