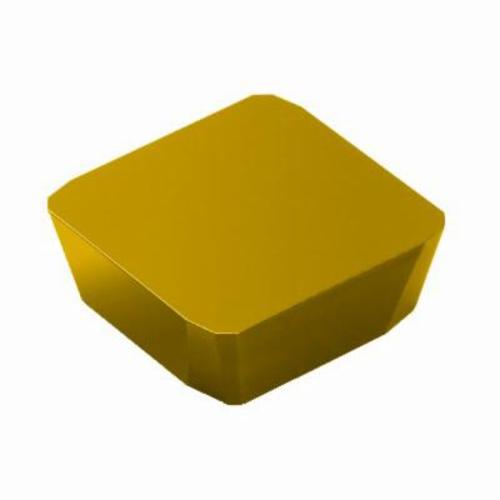

Sandvik Coromant 5751075 ModulMill Milling Insert, SMK 53E2 R 235, S-Square, SPKN Insert, Carbide, 235, SPKN 15 04 ED R 235
Custom_Product_Images_Illustration
Sandvik Coromant 5751075 ModulMill Milling Insert, SMK 53E2 R 235, S-Square, SPKN Insert, Carbide, 235, SPKN 15 04 ED R 235
SKU1239799
MFGR #5751075
Your Cost: $31.49/ea
List: Sandvik Coromant Milling Insert, Series: ModulMill, SPKN Insert, S-Square, 5/8 in Inscribed Circle, 0.1874 in Thickness, 5/8 in Length, 0.0334 in Corner Radius, 0 deg Rake, Manufacturer's Grade: 235, ANSI Code: SMK 53E2 R 235, ISO Code: SPKN 15 04 ED R 235, Right Hand, Carbide, CVD Coated, Material Grade: M/P
Sandvik Coromant Milling Insert, Series: ModulMill, SPKN Insert, S-Square, 5/8 in Inscribed Circle, 0.1874 in Thickness, 5/8 in Length, 0.0334 in Corner Radius, 0 deg Rake, Manufacturer's Grade: 235, ANSI Code: SMK 53E2 R 235, ISO Code: SPKN 15 04 ED R 235, Right Hand, Carbide, CVD Coated, Material Grade: M/P
Alternate Catalog Number SMK 53E2 R 235 ANSI Code SMK 53E2 R 235 Catalog Number 5751075 Corner Radius 0.0334 in Country of Origin JP Finish CVD-TiCN+TiN Coated Gross Weight Per Pack 0.3700 lb Hand of Insert Right ISO Code SPKN 15 04 ED R 235 Item Group 150 Lead Angle 45 ° Length 5/8 in Material Application Stainless Steel and Steel Series ModulMill T-Max® Thickness 0.1874 in UPC 11 69826272119 Width 5/8 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker ED Inscribed Circle 5/8 in Insert Size 1504 Insert Style SPKN Manufacturer's Grade 235 Material Carbide Material Grade M, P Rake Positive Shape Square Flat surface clamping interface 90 deg included angle 75 deg cutting edge angle 20 life cycle state 1.4 mm wiper edge 1-side cutting 0.1 to 0.21 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SMK 53E2 R 235 |
| ANSI Code | SMK 53E2 R 235 |
| Catalog Number | 5751075 |
| Corner Radius | 0.0334 in |
| Country of Origin | JP |
| Finish | CVD-TiCN+TiN Coated |
| Gross Weight Per Pack | 0.3700 lb |
| Hand of Insert | Right |
| ISO Code | SPKN 15 04 ED R 235 |
| Item Group | 150 |
| Lead Angle | 45 ° |
| Length | 5/8 in |
| Material Application | Stainless Steel and Steel |
| Series | ModulMill T-Max® |
| Thickness | 0.1874 in |
| UPC 11 | 69826272119 |
| Width | 5/8 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | ED |
| Inscribed Circle | 5/8 in |
| Insert Size | 1504 |
| Insert Style | SPKN |
| Manufacturer's Grade | 235 |
| Material | Carbide |
| Material Grade | M, P |
| Rake | Positive |
| Shape | Square |
| Flat surface clamping interface |
| 90 deg included angle |
| 75 deg cutting edge angle |
| 20 life cycle state |
| 1.4 mm wiper edge |
| 1-side cutting |
| 0.1 to 0.21 mm/r cutting feed |
