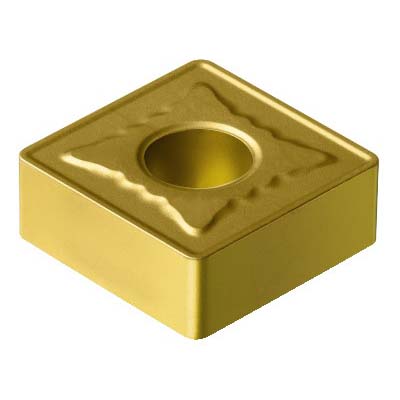

Sandvik Coromant 5750658 T-Max® P Turning Insert, SNMG 866-MR 235, S-Square, SNMG-MR (ISO P) Insert, 235, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant 5750658 T-Max® P Turning Insert, SNMG 866-MR 235, S-Square, SNMG-MR (ISO P) Insert, 235, Carbide
SKU1238660
MFGR #5750658
Your Cost: $91.97/ea
List: Sandvik Coromant Turning Insert, Series: T-Max® P, SNMG-MR (ISO P) Insert, S-Square, 1 in Inscribed Circle, 3/8 in Thickness, 1 in Length, MR Chipbreaker, 0.0937 in Corner Radius, 0.359 in Hole Dia, Manufacturer's Grade: 235, ANSI Code: SNMG 866-MR 235, ISO Code: SNMG 25 09 24-MR 235, 90 deg Included Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, Series: T-Max® P, SNMG-MR (ISO P) Insert, S-Square, 1 in Inscribed Circle, 3/8 in Thickness, 1 in Length, MR Chipbreaker, 0.0937 in Corner Radius, 0.359 in Hole Dia, Manufacturer's Grade: 235, ANSI Code: SNMG 866-MR 235, ISO Code: SNMG 25 09 24-MR 235, 90 deg Included Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Alternate Catalog Number SNMG 866-MR 235 ANSI Code SNMG 866-MR 235 Catalog Number 5750658 Corner Radius 0.0937 in Country of Origin SE Finish CVD-TiCN+TiN Coated Gross Weight Per Pack 0.9600 lb Hole Diameter 0.359 in Included Angle 90 ° ISO Code SNMG 25 09 24-MR 235 Item Group 340 Length 1 in Relief Angle 0 ° Series T-Max® P Thickness 3/8 in UPC 11 69826273288 Width 1 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MR Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 1 in Insert Size 866 Insert Style SNMG Manufacturer's Grade 235 Material Carbide Material Grade M Maximum Depth of Cut 12 mm Rake Negative Seat Size 25 Shape Square Universal insert for operations from finishing to medium machining Can also be used for counterboring Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times Mechanical post-treatment - unique residual stress rate, increased process reliability Large, universal chip breaking area and longer tool life for ISO P geometries Ground seating surface after coating for improved process reliability when working with interrupted cuts Silver flank face indicator layer for extremely easy wear detection Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation Extremely smooth rake face for excellent tribochemical wear resistance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SNMG 866-MR 235 |
| ANSI Code | SNMG 866-MR 235 |
| Catalog Number | 5750658 |
| Corner Radius | 0.0937 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+TiN Coated |
| Gross Weight Per Pack | 0.9600 lb |
| Hole Diameter | 0.359 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 25 09 24-MR 235 |
| Item Group | 340 |
| Length | 1 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 3/8 in |
| UPC 11 | 69826273288 |
| Width | 1 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MR |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 1 in |
| Insert Size | 866 |
| Insert Style | SNMG |
| Manufacturer's Grade | 235 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 12 mm |
| Rake | Negative |
| Seat Size | 25 |
| Shape | Square |
| Universal insert for operations from finishing to medium machining |
| Can also be used for counterboring |
| Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times |
| Mechanical post-treatment - unique residual stress rate, increased process reliability |
| Large, universal chip breaking area and longer tool life for ISO P geometries |
| Ground seating surface after coating for improved process reliability when working with interrupted cuts |
| Silver flank face indicator layer for extremely easy wear detection |
| Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation |
| Extremely smooth rake face for excellent tribochemical wear resistance |
