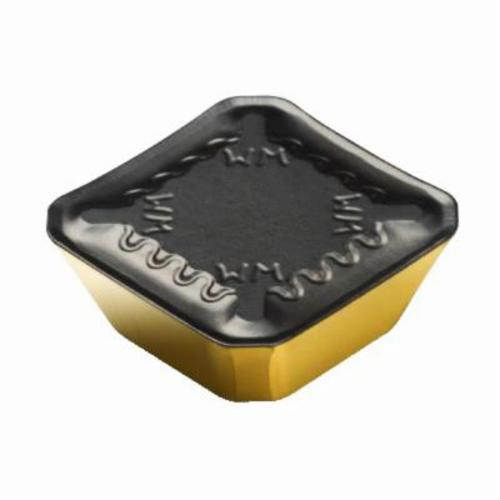

Sandvik Coromant 5749796 ModulMill Milling Insert, SEKR 12 04 AZ-WM 4230, S-Square, SEKR-WM Insert, Carbide, 4230, SEKR 12 04 AZ-WM 4230
Custom_Product_Images_Illustration
Sandvik Coromant 5749796 ModulMill Milling Insert, SEKR 12 04 AZ-WM 4230, S-Square, SEKR-WM Insert, Carbide, 4230, SEKR 12 04 AZ-WM 4230
SKU950703
MFGR #5749796
Your Cost: $31.58/ea
List: Sandvik Coromant Milling Insert, Series: ModulMill, SEKR-WM Insert, S-Square, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5275 in Length, WM Chipbreaker, 0.059 in Corner Radius, 15 deg Rake, Manufacturer's Grade: 4230, ANSI Code: SEKR 12 04 AZ-WM 4230, ISO Code: SEKR 12 04 AZ-WM 4230, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Milling Insert, Series: ModulMill, SEKR-WM Insert, S-Square, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5275 in Length, WM Chipbreaker, 0.059 in Corner Radius, 15 deg Rake, Manufacturer's Grade: 4230, ANSI Code: SEKR 12 04 AZ-WM 4230, ISO Code: SEKR 12 04 AZ-WM 4230, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number SEKR 12 04 AZ-WM 4230 ANSI Code SEKR 12 04 AZ-WM 4230 Catalog Number 5749796 Corner Radius 0.059 in Country of Origin JP Finish MTCVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter Carbide ISO Code SEKR 12 04 AZ-WM 4230 Item Group 150 Lead Angle 4.76 mm Length 0.5275 in Material Application Cast Iron and Steel Series ModulMill Thickness 0.1874 in Type S - Square UPC 11 69826247131 UPC 12 69826247131 Width 1.5 mm Width UOM IN Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker WM Inscribed Circle 1/2 in Insert Size 12.7 mm Insert Style SEKR-WM Manufacturer's Grade 4230 Material Carbide Material Grade K/P Rake 15 deg Shape S-Square Flat surface clamping interface 90 deg included angle 45 deg cutting edge angle 20 life cycle state 1.6 mm wiper edge 1-side cutting 0.1 to 0.28 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SEKR 12 04 AZ-WM 4230 |
| ANSI Code | SEKR 12 04 AZ-WM 4230 |
| Catalog Number | 5749796 |
| Corner Radius | 0.059 in |
| Country of Origin | JP |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | Carbide |
| ISO Code | SEKR 12 04 AZ-WM 4230 |
| Item Group | 150 |
| Lead Angle | 4.76 mm |
| Length | 0.5275 in |
| Material Application | Cast Iron and Steel |
| Series | ModulMill |
| Thickness | 0.1874 in |
| Type | S - Square |
| UPC 11 | 69826247131 |
| UPC 12 | 69826247131 |
| Width | 1.5 mm |
| Width UOM | IN |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | WM |
| Inscribed Circle | 1/2 in |
| Insert Size | 12.7 mm |
| Insert Style | SEKR-WM |
| Manufacturer's Grade | 4230 |
| Material | Carbide |
| Material Grade | K/P |
| Rake | 15 deg |
| Shape | S-Square |
| Flat surface clamping interface |
| 90 deg included angle |
| 45 deg cutting edge angle |
| 20 life cycle state |
| 1.6 mm wiper edge |
| 1-side cutting |
| 0.1 to 0.28 mm/r cutting feed |
