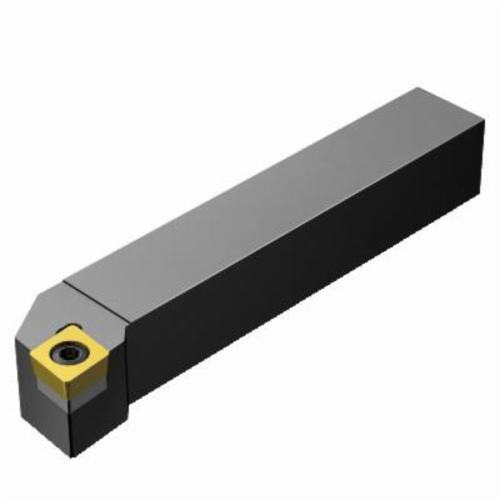

Sandvik Coromant 5748801 CoroTurn 107 Shank Tool, SCLCR/L Tool Holder, CCMT 09T308 (MIIDM) and CCMT 3(2.5)2 (MIIDN) Insert, -5 deg Lead, Rectangle Shank, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5748801 CoroTurn 107 Shank Tool, SCLCR/L Tool Holder, CCMT 09T308 (MIIDM) and CCMT 3(2.5)2 (MIIDN) Insert, -5 deg Lead, Rectangle Shank, Right Hand
SKU1250390
MFGR #5748801
Your Cost: $181.96/ea
Sandvik Coromant Shank Tool, Series: CoroTurn 107, SCLCR/L Tool Holder, 4 in Overall Length, Rectangle Shank, 5/8 in H x 5/8 in W Shank, Insert Compatibility: CCMT 09T308 (MIIDM) and CCMT 3(2.5)2 (MIIDN), 3/8 Insert Seat, Right Hand Cutting, -5 deg Lead Angle, ANSI Code: SCLCR 10 3, ISO Code: SCLCR 10 3, 0 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: CoroTurn 107, SCLCR/L Tool Holder, 4 in Overall Length, Rectangle Shank, 5/8 in H x 5/8 in W Shank, Insert Compatibility: CCMT 09T308 (MIIDM) and CCMT 3(2.5)2 (MIIDN), 3/8 Insert Seat, Right Hand Cutting, -5 deg Lead Angle, ANSI Code: SCLCR 10 3, ISO Code: SCLCR 10 3, 0 deg Rake, Steel
Alternate Catalog Number SCLCR 10 3 ANSI Code SCLCR 10 3 Back of Bar to Cutting Edge SCLCR 10 3 Catalog Number 5748801 Country of Origin IN Finish Indexable Gross Weight Per Pack 0.5400 lb Head Length 0 deg Inscribed Circle -5 deg Insert Seat Size 3/8 ISO Code SCLCR 10 3 Item Group 210 Material Steel Series CoroTurn 107 Shank Type Rectangle Type Indexable UPC 11 69826235944 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility CCMT 09T308 (MIIDM) and CCMT 3(2.5)2 (MIIDN) Lead Angle -5 deg Overall Length 4 in Rake 0 deg Shank Size 5/8 in H x 5/8 in W Tool Holder Style SCLCR/L 0 deg body machine side 0 deg body workpiece side Without coolant entry No coolant exit 0 deg inclination 95 deg cutting edge 0 deg maximum ramping 20 life cycle state 16 mm maximum overhang 3 Nm torque 19.05 mm W functional 40 - 60 deg insert screw clamping C - 80 deg diamond insert ANSI Code: SCLCR 10 3 ISO Code: SCLCR 10 3
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | SCLCR 10 3 |
| ANSI Code | SCLCR 10 3 |
| Back of Bar to Cutting Edge | SCLCR 10 3 |
| Catalog Number | 5748801 |
| Country of Origin | IN |
| Finish | Indexable |
| Gross Weight Per Pack | 0.5400 lb |
| Head Length | 0 deg |
| Inscribed Circle | -5 deg |
| Insert Seat Size | 3/8 |
| ISO Code | SCLCR 10 3 |
| Item Group | 210 |
| Material | Steel |
| Series | CoroTurn 107 |
| Shank Type | Rectangle |
| Type | Indexable |
| UPC 11 | 69826235944 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | CCMT 09T308 (MIIDM) and CCMT 3(2.5)2 (MIIDN) |
| Lead Angle | -5 deg |
| Overall Length | 4 in |
| Rake | 0 deg |
| Shank Size | 5/8 in H x 5/8 in W |
| Tool Holder Style | SCLCR/L |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 95 deg cutting edge |
| 0 deg maximum ramping |
| 20 life cycle state |
| 16 mm maximum overhang |
| 3 Nm torque |
| 19.05 mm W functional |
| 40 - 60 deg insert screw clamping |
| C - 80 deg diamond insert |
| ANSI Code: SCLCR 10 3 |
| ISO Code: SCLCR 10 3 |
