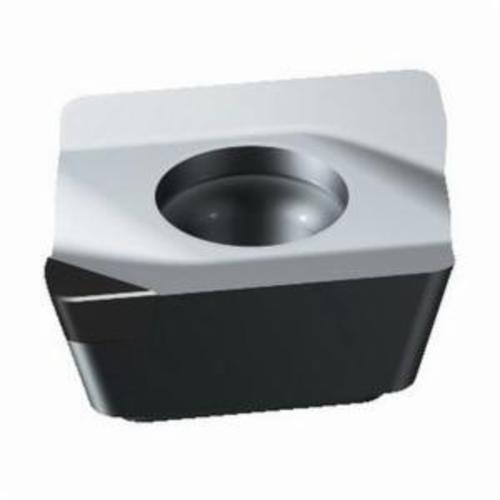

Sandvik Coromant 5747645 CoroMill® Century Milling insert, R590-1105H-ZC2-KL CB50, D-Diamond, R/L590..H-Z..-KL Insert, Carbide, CB50, R590-1105H-ZC2-KL CB50
R590/L590 Milling Inserts
1242687
MFG #: 5747645
Sandvik Coromant
144.02000
/ ea
Sandvik Coromant Milling insert, Series: CoroMill® Century, R/L590..H-Z..-KL Insert, D-Diamond, 0.433 in Inscribed Circle, 0.1968 in Thickness, 0.4527 in Width, KL Chipbreaker, 20 deg Rake, 90 deg Lead Angle, 0.1811 in Hole Dia, Manufacturer's Grade: CB50, ANSI Code: R590-1105H-ZC2-KL CB50, ISO Code: R590-1105H-ZC2-KL CB50, Right Hand, Carbide, Uncoated, Material Grade: H/K
- Features
| 1.2 mm D maximum cutting |
| 1.7 mm L corner chamfer |
| 2.347 mm L wiper edge |
| 200 mm wiper edge radius |
| Sharp cutting edge |
| 1 cutting edge |
| 1.47 mm W corner chamfer |
| 40 - 60 countersunk hole and non-flat surface clamping interface |
| 60 deg corner chamfer |
| 90 deg cutting edge |
| 3 mm L effective cutting edge |
| 1-Side cutting |
| H tolerance class |
| Features wiper edge property |
| 20 life cycle state |
