Sandvik Coromant 5747314 T-Max® U Insert Drill, 3.1496 in Drill, 3.1496 in Shank, 11.3386 in AOL, 8.1889 in D Maximum Drill, 2.6

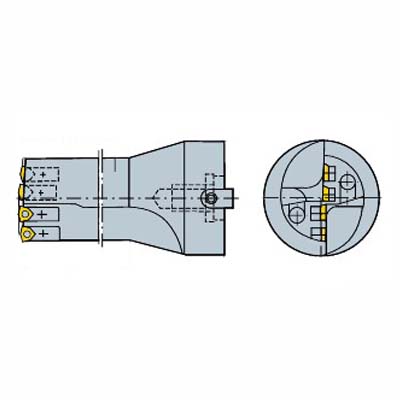

Custom_Product_Images_Illustration
Sandvik Coromant 5747314 T-Max® U Insert Drill, 3.1496 in Drill, 3.1496 in Shank, 11.3386 in AOL, 8.1889 in D Maximum Drill, 2.6
SKU1232243
MFGR #5747314
Your Cost: $1,276.02/ea
Sandvik Coromant Insert Drill, Series: T-Max® U, 3.1496 in Drill, 3.1496 in Shank Dia, 8.1889 in Maximum Drill Depth, 11.3386 in Overall Length, 2.6 Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: WCMX 06.., 8.1889 in Flute Length
Sandvik Coromant Insert Drill, Series: T-Max® U, 3.1496 in Drill, 3.1496 in Shank Dia, 8.1889 in Maximum Drill Depth, 11.3386 in Overall Length, 2.6 Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: WCMX 06.., 8.1889 in Flute Length
Catalog Number 5747314 Drill Depth by Diameter Ratio 2.6 Gage Insert T-Max® U Gross Weight Per Pack 13.2000 lb Modular Connection Size 80 Number of Drill Inserts 2 Overall Length 11.3386 in Series T-Max® U Type 208 mm UPC 11 69826243380 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter T-Max® U Drill Size 3.1496 in Flute Length 8.1889 in Insert Compatibility WCMX 06.. Insert Style WCMX Maximum Drill Depth 8.1889 in Shank Diameter 3.1496 in Shank Length 2 Shank Type 2.6 262 mm L functional 80 mm Dia body 8 mm L point 5000 r/min +/- 0.2 mm achievable hole tolerance Axial concentric coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute Right hand helix flute 0 deg rake orthogonal 0 deg inclination, 2 flutes 85 deg cutting edge 40 life cycle state 210 mm L steel body R416.9 tool style ANSI Code: R416.9-0800-25-01 ISO Code: R416.9-0800-25-01
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 5747314 |
| Drill Depth by Diameter Ratio | 2.6 |
| Gage Insert | T-Max® U |
| Gross Weight Per Pack | 13.2000 lb |
| Modular Connection Size | 80 |
| Number of Drill Inserts | 2 |
| Overall Length | 11.3386 in |
| Series | T-Max® U |
| Type | 208 mm |
| UPC 11 | 69826243380 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | T-Max® U |
| Drill Size | 3.1496 in |
| Flute Length | 8.1889 in |
| Insert Compatibility | WCMX 06.. |
| Insert Style | WCMX |
| Maximum Drill Depth | 8.1889 in |
| Shank Diameter | 3.1496 in |
| Shank Length | 2 |
| Shank Type | 2.6 |
| 262 mm L functional |
| 80 mm Dia body |
| 8 mm L point |
| 5000 r/min |
| +/- 0.2 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| Right hand helix flute |
| 0 deg rake orthogonal |
| 0 deg inclination, 2 flutes |
| 85 deg cutting edge |
| 40 life cycle state |
| 210 mm L steel body |
| R416.9 tool style |
| ANSI Code: R416.9-0800-25-01 |
| ISO Code: R416.9-0800-25-01 |
