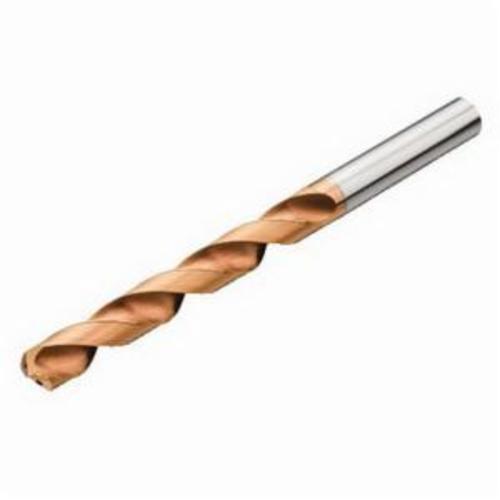

Sandvik Coromant 5747177 CoroDrill® Delta-C R840 High Performance Jobber Drill, 0.2657 in Dia x 4.1338 in L, Carbide, PVD
Custom_Product_Images_Illustration
Sandvik Coromant 5747177 CoroDrill® Delta-C R840 High Performance Jobber Drill, 0.2657 in Dia x 4.1338 in L, Carbide, PVD
SKU332796
MFGR #5747177
Your Cost: $335.78/ea
CoroDrill® R840 is a solid carbide drill for productive hole making in various applications. designed for superior drilling in all materials, including hard steels up to 60 HRC. Available in a variety of diameters for general and small part machining.
CoroDrill® R840 is a solid carbide drill for productive hole making in various applications. designed for superior drilling in all materials, including hard steels up to 60 HRC. Available in a variety of diameters for general and small part machining.
Alternate Catalog Number R840-0675-70-A1A 1220 Applicable Materials Steel and Cast Materials, Titanium Alloy, Cast Iron, Non-Ferrous and Hard Materials Catalog Number 5747177 Country of Origin CN Cutting Depth 1.9055 in Cutting Diameter Self-Centering Split Cutting Direction Right Hand Cutting Edge Material Carbide Diameter 0.2657 in Flute Length 2.3228 in Flute Type SSK Gross Weight Per Pack 0.1400 lb Item Group 720 Length of Cut CoroDrill® Delta-C R840 Letter|Wire Size 48.4 mm Number of Flutes 2 Overall Length 4.1338 in Point Type Self-Centering/Split Series CoroDrill® Delta-C R840 Shank Diameter 140 deg Shank Length High Performance Shank Size 0.3149 in Shank Type Cylindrical Standards DIN1835-A/DIN6535-HA Thread Size 6.75 mm Thread Type 2 Type High Performance UPC 11 69826225668 UPC 12 69826225668 Warranty Info High Performance Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Finish PVD Material Carbide Point Angle 140 deg 0 deg body half taper Axial concentric coolant entry on circle Axial concentric coolant exit on circle 20 bar coolant EFW cutting feed 28.647 deg helix flute 19.484 deg orthogonal rake 1220 manufacturer grade 103.8 mm L functional 36 mm L clamping 3 regrinds 1.2 mm L point 3 mm L regrind 10851 r/min H6 connection diameter tolerance H9 achievable hole tolerance R840..70-A1A tool style 7.17 usable length diameter ratio H, K, M, N, P, S material grade 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R840-0675-70-A1A 1220 |
| Applicable Materials | Steel and Cast Materials, Titanium Alloy, Cast Iron, Non-Ferrous and Hard Materials |
| Catalog Number | 5747177 |
| Country of Origin | CN |
| Cutting Depth | 1.9055 in |
| Cutting Diameter | Self-Centering Split |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Carbide |
| Diameter | 0.2657 in |
| Flute Length | 2.3228 in |
| Flute Type | SSK |
| Gross Weight Per Pack | 0.1400 lb |
| Item Group | 720 |
| Length of Cut | CoroDrill® Delta-C R840 |
| Letter|Wire Size | 48.4 mm |
| Number of Flutes | 2 |
| Overall Length | 4.1338 in |
| Point Type | Self-Centering/Split |
| Series | CoroDrill® Delta-C R840 |
| Shank Diameter | 140 deg |
| Shank Length | High Performance |
| Shank Size | 0.3149 in |
| Shank Type | Cylindrical |
| Standards | DIN1835-A/DIN6535-HA |
| Thread Size | 6.75 mm |
| Thread Type | 2 |
| Type | High Performance |
| UPC 11 | 69826225668 |
| UPC 12 | 69826225668 |
| Warranty Info | High Performance |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Finish | PVD |
| Material | Carbide |
| Point Angle | 140 deg |
| 0 deg body half taper |
| Axial concentric coolant entry on circle |
| Axial concentric coolant exit on circle |
| 20 bar coolant |
| EFW cutting feed |
| 28.647 deg helix flute |
| 19.484 deg orthogonal rake |
| 1220 manufacturer grade |
| 103.8 mm L functional |
| 36 mm L clamping |
| 3 regrinds |
| 1.2 mm L point |
| 3 mm L regrind |
| 10851 r/min |
| H6 connection diameter tolerance |
| H9 achievable hole tolerance |
| R840..70-A1A tool style |
| 7.17 usable length diameter ratio |
| H, K, M, N, P, S material grade |
| 20 life cycle state |
