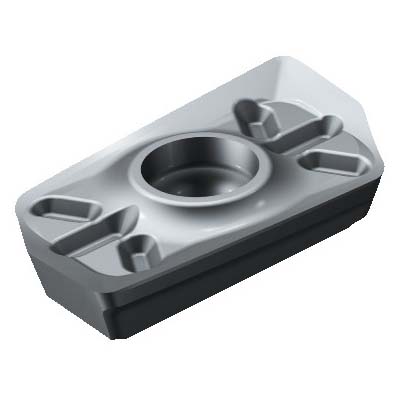

Sandvik Coromant 5747155 CoroMill® 790 Milling Insert, R790-160405PH-NL H13A, R-Rectangle, R790..PH-NL Insert, Carbide, H13A, R790-160405PH-NL H13A
Custom_Product_Images_Illustration
Sandvik Coromant 5747155 CoroMill® 790 Milling Insert, R790-160405PH-NL H13A, R-Rectangle, R790..PH-NL Insert, Carbide, H13A, R790-160405PH-NL H13A
SKU1251399
MFGR #5747155
Your Cost: $42.67/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 790, R790..PH-NL Insert, R-Rectangle, 0.433 in Inscribed Circle, 0.1574 in Thickness, 0.433 in Width, 0.5118 in Length, NL Chipbreaker, 0.0196 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: R790-160405PH-NL H13A, ISO Code: R790-160405PH-NL H13A, Right Hand, Carbide, Uncoated, Material Grade: N
Sandvik Coromant Milling Insert, Series: CoroMill® 790, R790..PH-NL Insert, R-Rectangle, 0.433 in Inscribed Circle, 0.1574 in Thickness, 0.433 in Width, 0.5118 in Length, NL Chipbreaker, 0.0196 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: R790-160405PH-NL H13A, ISO Code: R790-160405PH-NL H13A, Right Hand, Carbide, Uncoated, Material Grade: N
Alternate Catalog Number R790-160405PH-NL H13A ANSI Code R790-160405PH-NL H13A Catalog Number 5747155 Corner Radius 0.0196 in Country of Origin SE Finish Uncoated Gross Weight Per Pack 0.0100 lb Hand of Insert Right Hole Diameter 0.1614 in ISO Code R790-160405PH-NL H13A Item Group 350 Lead Angle 90 deg Length 0.5118 in Relief Angle 4 mm Series CoroMill® 790 Thickness 0.1574 in Type R - Rectangle UPC 11 69826253444 Width 0.433 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker NL Inscribed Circle 0.433 in Insert Size N Insert Style R790..PH-NL Manufacturer's Grade H13A Material Carbide Material Grade N Maximum Depth of Cut R - Rectangle Rake Positive Shape R-Rectangle 40 - 60 deg countersunk hole and non-flat surface clamping interface 20 deg clearance 15 mm D cutting 1 mm L wiper edge 90 deg major cutting edge 16 mm L effective cutting edge 1-side cutting 20 life cycle state 2 corner F cutting edge condition 2 cutting edge Screw clamp mounting 0.1 - 0.3 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R790-160405PH-NL H13A |
| ANSI Code | R790-160405PH-NL H13A |
| Catalog Number | 5747155 |
| Corner Radius | 0.0196 in |
| Country of Origin | SE |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1614 in |
| ISO Code | R790-160405PH-NL H13A |
| Item Group | 350 |
| Lead Angle | 90 deg |
| Length | 0.5118 in |
| Relief Angle | 4 mm |
| Series | CoroMill® 790 |
| Thickness | 0.1574 in |
| Type | R - Rectangle |
| UPC 11 | 69826253444 |
| Width | 0.433 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | NL |
| Inscribed Circle | 0.433 in |
| Insert Size | N |
| Insert Style | R790..PH-NL |
| Manufacturer's Grade | H13A |
| Material | Carbide |
| Material Grade | N |
| Maximum Depth of Cut | R - Rectangle |
| Rake | Positive |
| Shape | R-Rectangle |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 20 deg clearance |
| 15 mm D cutting |
| 1 mm L wiper edge |
| 90 deg major cutting edge |
| 16 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| F cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
| 0.1 - 0.3 mm/r cutting feed |
