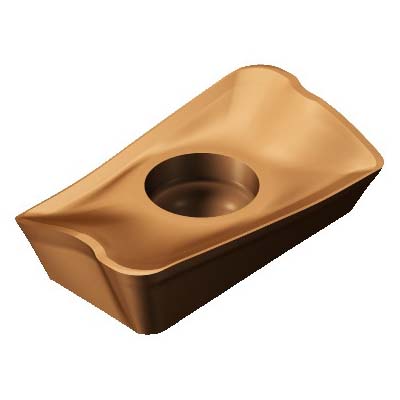

Sandvik Coromant 5745963 CoroMill® 390 Milling Insert, R390-11 T3 31M-PM 1030, L-Rectangle, R390..M-PM Insert, Carbide, 1030, R390-11 T3 31M-PM 1030
Custom_Product_Images_Illustration
Sandvik Coromant 5745963 CoroMill® 390 Milling Insert, R390-11 T3 31M-PM 1030, L-Rectangle, R390..M-PM Insert, Carbide, 1030, R390-11 T3 31M-PM 1030
SKU1234668
MFGR #5745963
Your Cost: $18.78/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..M-PM Insert, L-Rectangle, 0.268 in Inscribed Circle, 0.1413 in Thickness, 0.268 in Width, 0.4507 in Length, PM Chipbreaker, 0.122 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1102 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: R390-11 T3 31M-PM 1030, ISO Code: R390-11 T3 31M-PM 1030, Right Hand, Carbide, PVD Coated, Material Grade: M/P
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..M-PM Insert, L-Rectangle, 0.268 in Inscribed Circle, 0.1413 in Thickness, 0.268 in Width, 0.4507 in Length, PM Chipbreaker, 0.122 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1102 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: R390-11 T3 31M-PM 1030, ISO Code: R390-11 T3 31M-PM 1030, Right Hand, Carbide, PVD Coated, Material Grade: M/P
ANSI Code R390-11 T3 31M-PM 1030 Catalog Number 5745963 Corner Radius 0.122 in Country of Origin SE Finish PVD-TiAlN Coated Gross Weight Per Pack 8.6200 lb Hand of Insert Right Hole Diameter 0.1102 in ISO Code R390-11 T3 31M-PM 1030 Lead Angle 90 ° Length 0.4507 in Material Application Steel and Stainless Steel Series CoroMill® 390 Thickness 0.141 in UPC 11 69826233476 Width 0.268 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Chipbreaker PM Inscribed Circle 0.268 in Insert Size 11T331 Insert Style R390..M-PM Manufacturer's Grade 1030 Material Carbide Material Grade M, P Rake Positive Shape Rectangle 40 to 60 deg countersunk hole and non-flat surface clamping interface 21 deg clearance 10 mm D cutting 90 deg major cutting edge 10 mm L effective cutting edge 1-side cutting 20 life cycle state 2 corner E cutting edge condition 2 cutting edge Screw clamp mounting 0.08 to 0.2 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | R390-11 T3 31M-PM 1030 |
| Catalog Number | 5745963 |
| Corner Radius | 0.122 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN Coated |
| Gross Weight Per Pack | 8.6200 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1102 in |
| ISO Code | R390-11 T3 31M-PM 1030 |
| Lead Angle | 90 ° |
| Length | 0.4507 in |
| Material Application | Steel and Stainless Steel |
| Series | CoroMill® 390 |
| Thickness | 0.141 in |
| UPC 11 | 69826233476 |
| Width | 0.268 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Chipbreaker | PM |
| Inscribed Circle | 0.268 in |
| Insert Size | 11T331 |
| Insert Style | R390..M-PM |
| Manufacturer's Grade | 1030 |
| Material | Carbide |
| Material Grade | M, P |
| Rake | Positive |
| Shape | Rectangle |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 21 deg clearance |
| 10 mm D cutting |
| 90 deg major cutting edge |
| 10 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
| 0.08 to 0.2 mm/r cutting feed |
