Sandvik Coromant

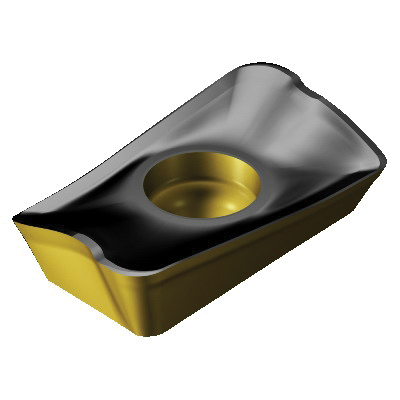

Sandvik Coromant 5745870 CoroMill® 390 Milling Insert, R390-17 04 40E-PM 4240 ANSI, L-Rectangle, R390..E-PM Insert, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5745870 CoroMill® 390 Milling Insert, R390-17 04 40E-PM 4240 ANSI, L-Rectangle, R390..E-PM Insert, Carbide
SKU303800
MFGR #5745870
Your Cost: $27.23/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..E-PM Insert, L-Rectangle, 0.378 in Inscribed Circle, 0.1874 in Thickness, 0.378 in Width, 0.687 in Length, PM Chipbreaker, 0.157 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: 4240, ANSI Code: R390-17 04 40E-PM 4240, ISO Code: R390-17 04 40E-PM 4240, Right Hand, Carbide, MTCVD Coated, Material Grade: M/P
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..E-PM Insert, L-Rectangle, 0.378 in Inscribed Circle, 0.1874 in Thickness, 0.378 in Width, 0.687 in Length, PM Chipbreaker, 0.157 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: 4240, ANSI Code: R390-17 04 40E-PM 4240, ISO Code: R390-17 04 40E-PM 4240, Right Hand, Carbide, MTCVD Coated, Material Grade: M/P
ANSI Code R390-17 04 40E-PM 4240 Catalog Number 5745870 Corner Radius 0.157 in Country of Origin SE Finish MTCVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.1900 lb Hand of Insert Right Hole Diameter 0.1614 in ISO Code R390-17 04 40E-PM 4240 Lead Angle 90 ° Length 0.687 in Material Application Steel and Stainless Steel Series CoroMill® 390 Thickness 0.187 in UPC 11 69826233504 UPC 12 69826233504 Width 0.378 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Chipbreaker PM Inscribed Circle 0.378 in Insert Size 170440 Insert Style R390..E-PM Manufacturer's Grade 4240 Material Carbide Material Grade M, P Rake Positive Shape Rectangle 40 to 60 deg countersunk hole and non-flat surface clamping interface 19 deg clearance 15 mm D cutting 90 deg major cutting edge 15.7 mm L effective cutting edge 1-side cutting 20 life cycle state 2 corner E cutting edge condition 2 cutting edge Screw clamp mounting 0.08 -0.2 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | R390-17 04 40E-PM 4240 |
| Catalog Number | 5745870 |
| Corner Radius | 0.157 in |
| Country of Origin | SE |
| Finish | MTCVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.1900 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1614 in |
| ISO Code | R390-17 04 40E-PM 4240 |
| Lead Angle | 90 ° |
| Length | 0.687 in |
| Material Application | Steel and Stainless Steel |
| Series | CoroMill® 390 |
| Thickness | 0.187 in |
| UPC 11 | 69826233504 |
| UPC 12 | 69826233504 |
| Width | 0.378 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Chipbreaker | PM |
| Inscribed Circle | 0.378 in |
| Insert Size | 170440 |
| Insert Style | R390..E-PM |
| Manufacturer's Grade | 4240 |
| Material | Carbide |
| Material Grade | M, P |
| Rake | Positive |
| Shape | Rectangle |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 19 deg clearance |
| 15 mm D cutting |
| 90 deg major cutting edge |
| 15.7 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
| 0.08 -0.2 mm/r cutting feed |
