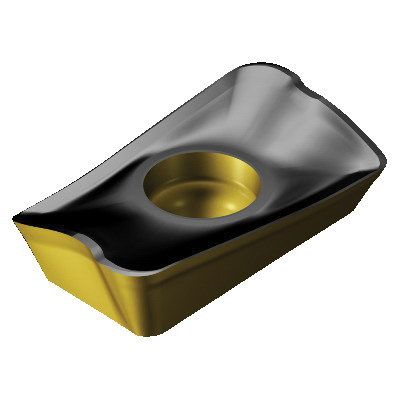

Sandvik Coromant 5745710 CoroMill® 390 Milling Insert, R390-17 04 20E-PM 4240 ANSI, L-Rectangle, R390..E-PM Insert, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant 5745710 CoroMill® 390 Milling Insert, R390-17 04 20E-PM 4240 ANSI, L-Rectangle, R390..E-PM Insert, Carbide
SKU260213
MFGR #5745710
Your Cost: $27.23/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..E-PM Insert, L-Rectangle, 0.378 in Inscribed Circle, 0.1874 in Thickness, 0.378 in Width, 0.687 in Length, PM Chipbreaker, 0.079 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: 4240, ANSI Code: R390-17 04 20E-PM 4240, ISO Code: R390-17 04 20E-PM 4240, Right Hand, Carbide, MTCVD Coated, Material Grade: K/M/P
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..E-PM Insert, L-Rectangle, 0.378 in Inscribed Circle, 0.1874 in Thickness, 0.378 in Width, 0.687 in Length, PM Chipbreaker, 0.079 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: 4240, ANSI Code: R390-17 04 20E-PM 4240, ISO Code: R390-17 04 20E-PM 4240, Right Hand, Carbide, MTCVD Coated, Material Grade: K/M/P
ANSI Code R390-17 04 20E-PM 4240 Catalog Number 5745710 Corner Radius 0.079 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Right Hole Diameter 0.1614 in Included Angle L - Rectangle ISO Code R390-17 04 20E-PM 4240 Lead Angle 90 deg Length 0.687 in Material Application Cast Iron, Steel and Stainless Steel Relief Angle 9.6 mm Series CoroMill® 390 Thickness 0.1874 in Type 17.45 mm UPC 11 69826233496 UPC 12 69826233496 Warranty 4.7625 mm Width 0.378 in Width UOM IN Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Chipbreaker PM Inscribed Circle 0.378 in Insert Size R390-17 04 20E-PM 4240 Insert Style R390..E-PM Manufacturer's Grade 4240 Material Carbide Material Grade K/M/P Rake Positive Shape L-Rectangle 40 to 60 deg countersunk hole and non-flat surface clamping interface 19 deg clearance 15.7 mm D cutting 0.3 mm L wiper edge 90 deg major cutting edge 15.7 mm L effective cutting edge 1-side cutting 20 life cycle state 2 corner E cutting edge condition 2 cutting edge Screw clamp mounting 0.08 -0.2 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | R390-17 04 20E-PM 4240 |
| Catalog Number | 5745710 |
| Corner Radius | 0.079 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1614 in |
| Included Angle | L - Rectangle |
| ISO Code | R390-17 04 20E-PM 4240 |
| Lead Angle | 90 deg |
| Length | 0.687 in |
| Material Application | Cast Iron, Steel and Stainless Steel |
| Relief Angle | 9.6 mm |
| Series | CoroMill® 390 |
| Thickness | 0.1874 in |
| Type | 17.45 mm |
| UPC 11 | 69826233496 |
| UPC 12 | 69826233496 |
| Warranty | 4.7625 mm |
| Width | 0.378 in |
| Width UOM | IN |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Chipbreaker | PM |
| Inscribed Circle | 0.378 in |
| Insert Size | R390-17 04 20E-PM 4240 |
| Insert Style | R390..E-PM |
| Manufacturer's Grade | 4240 |
| Material | Carbide |
| Material Grade | K/M/P |
| Rake | Positive |
| Shape | L-Rectangle |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 19 deg clearance |
| 15.7 mm D cutting |
| 0.3 mm L wiper edge |
| 90 deg major cutting edge |
| 15.7 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
| 0.08 -0.2 mm/r cutting feed |
