Sandvik Coromant

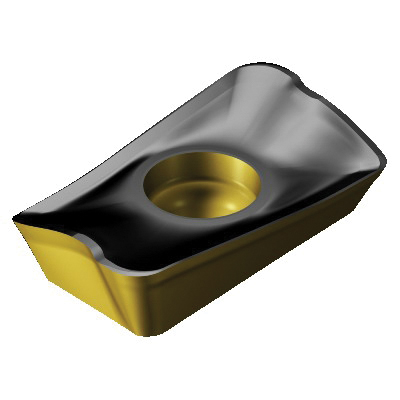

Sandvik Coromant 5745678 CoroMill® 390 Milling Insert, R390-11 T3 08M-PM 4230, L-Rectangle, R390..M-PM Insert, Carbide, 4230, R390-11 T3 08M-PM 4230
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5745678 CoroMill® 390 Milling Insert, R390-11 T3 08M-PM 4230, L-Rectangle, R390..M-PM Insert, Carbide, 4230, R390-11 T3 08M-PM 4230
SKU361180
MFGR #5745678
Your Cost: $18.52/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..M-PM Insert, L-Rectangle, 0.268 in Inscribed Circle, 0.1413 in Thickness, 0.268 in Width, 0.4507 in Length, PM Chipbreaker, 0.031 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1102 in Hole Dia, Manufacturer's Grade: 4230, ANSI Code: R390-11 T3 08M-PM 4230, ISO Code: R390-11 T3 08M-PM 4230, Right Hand, Carbide, MTCVD Coated, Material Grade: P
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..M-PM Insert, L-Rectangle, 0.268 in Inscribed Circle, 0.1413 in Thickness, 0.268 in Width, 0.4507 in Length, PM Chipbreaker, 0.031 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1102 in Hole Dia, Manufacturer's Grade: 4230, ANSI Code: R390-11 T3 08M-PM 4230, ISO Code: R390-11 T3 08M-PM 4230, Right Hand, Carbide, MTCVD Coated, Material Grade: P
ANSI Code R390-11 T3 08M-PM 4230 Catalog Number 5745678 Corner Radius 0.031 in Country of Origin IN Finish MTCVD Coated Gross Weight Per Pack 1 lb Hand of Insert Right Hole Diameter 0.1102 in Included Angle L - Rectangle ISO Code R390-11 T3 08M-PM 4230 Lead Angle 90 deg Length 0.4507 in Material Application Steel Series CoroMill® 390 Thickness 0.1413 in Type Right UPC 11 69826236450 UPC 12 69826236450 Width 0.268 in Width UOM IN Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Inscribed Circle 0.268 in Insert Size R390-11 T3 08M-PM 4230 Insert Style R390..M-PM Manufacturer's Grade 4230 Material CARBIDE Material Grade P Rake Positive Shape L-Rectangle 40 to 60 deg countersunk hole and non-flat surface clamping interface 21 deg clearance 10 mm D cutting 1.2 mm L wiper edge 90 deg major cutting edge 10 mm L effective cutting edge 1-side cutting 20 life cycle state 2 corner E cutting edge condition 2 cutting edge Screw clamp mounting 0.08 to 0.15 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | R390-11 T3 08M-PM 4230 |
| Catalog Number | 5745678 |
| Corner Radius | 0.031 in |
| Country of Origin | IN |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1102 in |
| Included Angle | L - Rectangle |
| ISO Code | R390-11 T3 08M-PM 4230 |
| Lead Angle | 90 deg |
| Length | 0.4507 in |
| Material Application | Steel |
| Series | CoroMill® 390 |
| Thickness | 0.1413 in |
| Type | Right |
| UPC 11 | 69826236450 |
| UPC 12 | 69826236450 |
| Width | 0.268 in |
| Width UOM | IN |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Inscribed Circle | 0.268 in |
| Insert Size | R390-11 T3 08M-PM 4230 |
| Insert Style | R390..M-PM |
| Manufacturer's Grade | 4230 |
| Material | CARBIDE |
| Material Grade | P |
| Rake | Positive |
| Shape | L-Rectangle |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 21 deg clearance |
| 10 mm D cutting |
| 1.2 mm L wiper edge |
| 90 deg major cutting edge |
| 10 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
| 0.08 to 0.15 mm/r cutting feed |
