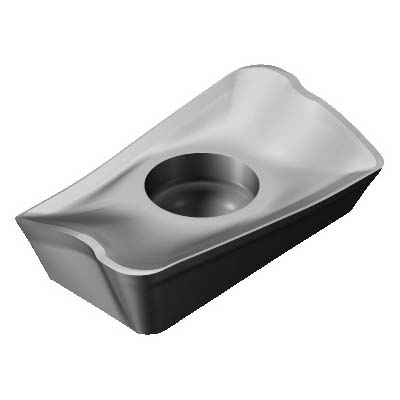

Sandvik Coromant 5745652 CoroMill® 390 Milling Insert, R390-11 T3 08E-NL H13A, L-Rectangle, R390..E-NL Insert, Carbide, H13A, R390-11 T3 08E-NL H13A
Custom_Product_Images_Illustration
Sandvik Coromant 5745652 CoroMill® 390 Milling Insert, R390-11 T3 08E-NL H13A, L-Rectangle, R390..E-NL Insert, Carbide, H13A, R390-11 T3 08E-NL H13A
SKU317764
MFGR #5745652
Your Cost: $22.88/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..E-NL Insert, L-Rectangle, 0.268 in Inscribed Circle, 0.1413 in Thickness, 0.268 in Width, 0.4507 in Length, NL Chipbreaker, 0.031 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1102 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: R390-11 T3 08E-NL H13A, ISO Code: R390-11 T3 08E-NL H13A, Right Hand, Carbide, Uncoated, Material Grade: N
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..E-NL Insert, L-Rectangle, 0.268 in Inscribed Circle, 0.1413 in Thickness, 0.268 in Width, 0.4507 in Length, NL Chipbreaker, 0.031 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1102 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: R390-11 T3 08E-NL H13A, ISO Code: R390-11 T3 08E-NL H13A, Right Hand, Carbide, Uncoated, Material Grade: N
Alternate Catalog Number R390-11 T3 08E-NL H13A ANSI Code R390-11 T3 08E-NL H13A Catalog Number 5745652 Corner Radius 0.031 in Country of Origin SE Finish Uncoated Gross Weight Per Pack 1 lb Hand of Insert Right Hole Diameter 0.1102 in ISO Code R390-11 T3 08E-NL H13A Item Group 350 Lead Angle 90 deg Length 0.4507 in Material Application Non-Ferrous Metals Relief Angle L - Rectangle Series CoroMill® 390 Thickness 0.1413 in Type 3.59 mm UPC 11 69826223914 UPC 12 69826223914 Width 0.268 in Width UOM IN Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker NL Inscribed Circle 0.268 in Insert Size 6.8 mm Insert Style R390..E-NL Manufacturer's Grade H13A Material Carbide Material Grade N Rake Positive Shape L-Rectangle 40 - 60 deg countersunk hole and non-flat surface clamping interface 21 deg clearance 10 mm D cutting 1.5 mm L wiper edge 90 deg major cutting edge 10 mm L effective cutting edge 1-side cutting 20 life cycle state 2 corner F cutting edge condition 2 cutting edge Screw clamp mounting 0.05 - 0.25 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R390-11 T3 08E-NL H13A |
| ANSI Code | R390-11 T3 08E-NL H13A |
| Catalog Number | 5745652 |
| Corner Radius | 0.031 in |
| Country of Origin | SE |
| Finish | Uncoated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1102 in |
| ISO Code | R390-11 T3 08E-NL H13A |
| Item Group | 350 |
| Lead Angle | 90 deg |
| Length | 0.4507 in |
| Material Application | Non-Ferrous Metals |
| Relief Angle | L - Rectangle |
| Series | CoroMill® 390 |
| Thickness | 0.1413 in |
| Type | 3.59 mm |
| UPC 11 | 69826223914 |
| UPC 12 | 69826223914 |
| Width | 0.268 in |
| Width UOM | IN |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | NL |
| Inscribed Circle | 0.268 in |
| Insert Size | 6.8 mm |
| Insert Style | R390..E-NL |
| Manufacturer's Grade | H13A |
| Material | Carbide |
| Material Grade | N |
| Rake | Positive |
| Shape | L-Rectangle |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 21 deg clearance |
| 10 mm D cutting |
| 1.5 mm L wiper edge |
| 90 deg major cutting edge |
| 10 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| F cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
| 0.05 - 0.25 mm/r cutting feed |
