Sandvik Coromant

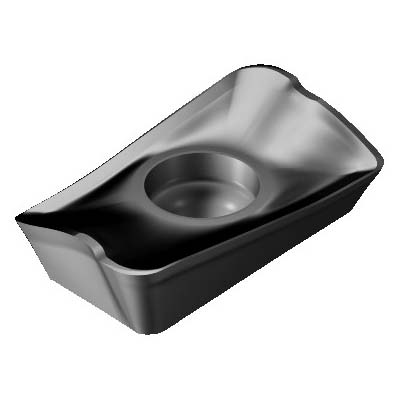

Sandvik Coromant 5745618 CoroMill® 390 Milling Insert, R390-17 04 04M-KM 3040, L-Rectangle, R390-17..M-KM Insert, Carbide, 3040, R390-17 04 04M-KM 3040
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5745618 CoroMill® 390 Milling Insert, R390-17 04 04M-KM 3040, L-Rectangle, R390-17..M-KM Insert, Carbide, 3040, R390-17 04 04M-KM 3040
SKU1234686
MFGR #5745618
Your Cost: $28.18/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390-17..M-KM Insert, L-Rectangle, 0.378 in Inscribed Circle, 0.1874 in Thickness, 0.378 in Width, 0.687 in Length, KM Chipbreaker, 0.016 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: 3040, ANSI Code: R390-17 04 04M-KM 3040, ISO Code: R390-17 04 04M-KM 3040, Right Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390-17..M-KM Insert, L-Rectangle, 0.378 in Inscribed Circle, 0.1874 in Thickness, 0.378 in Width, 0.687 in Length, KM Chipbreaker, 0.016 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: 3040, ANSI Code: R390-17 04 04M-KM 3040, ISO Code: R390-17 04 04M-KM 3040, Right Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number R390-17 04 04M-KM 3040 ANSI Code R390-17 04 04M-KM 3040 Catalog Number 5745618 Corner Radius 0.0157 in Country of Origin IN Finish MTCVD-TiCN+Al2O3 Coated Gross Weight Per Pack 0.1900 lb Hand of Insert Right Hole Diameter 0.1614 in ISO Code R390-17 04 04M-KM 3040 Item Group 350 Lead Angle 90 ° Length 0.687 in Material Application Cast Iron Series CoroMill® 390 Thickness 0.187 in UPC 11 69826216575 Width 0.378 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KM Inscribed Circle 0.378 in Insert Size 170404 Insert Style R390-17..M-KM Manufacturer's Grade 3040 Material Carbide Material Grade K Rake Positive Shape Rectangle 40 to 60 deg countersunk hole and non-flat surface clamping interface 19 deg clearance 15.7 mm D cutting 1 mm L wiper edge 90 deg major cutting edge 15.7 mm L effective cutting edge 1-side cutting 20 life cycle state 2 corner E cutting edge condition 2 cutting edge Screw clamp mounting 0.08 to 0.15 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R390-17 04 04M-KM 3040 |
| ANSI Code | R390-17 04 04M-KM 3040 |
| Catalog Number | 5745618 |
| Corner Radius | 0.0157 in |
| Country of Origin | IN |
| Finish | MTCVD-TiCN+Al2O3 Coated |
| Gross Weight Per Pack | 0.1900 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1614 in |
| ISO Code | R390-17 04 04M-KM 3040 |
| Item Group | 350 |
| Lead Angle | 90 ° |
| Length | 0.687 in |
| Material Application | Cast Iron |
| Series | CoroMill® 390 |
| Thickness | 0.187 in |
| UPC 11 | 69826216575 |
| Width | 0.378 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KM |
| Inscribed Circle | 0.378 in |
| Insert Size | 170404 |
| Insert Style | R390-17..M-KM |
| Manufacturer's Grade | 3040 |
| Material | Carbide |
| Material Grade | K |
| Rake | Positive |
| Shape | Rectangle |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 19 deg clearance |
| 15.7 mm D cutting |
| 1 mm L wiper edge |
| 90 deg major cutting edge |
| 15.7 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
| 0.08 to 0.15 mm/r cutting feed |
