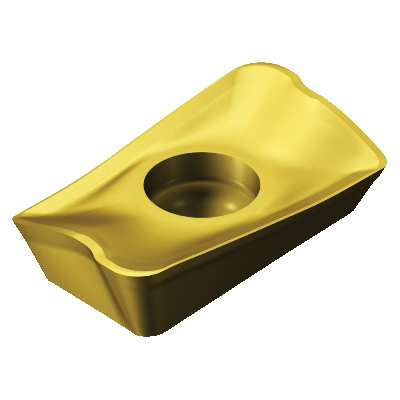

Sandvik Coromant 5745604 CoroMill® 390 Milling Insert, R390-17 04 08E-ML 2040, L-Rectangle, R390..E-ML Insert, Carbide, 2040, R390-17 04 08E-ML 2040
R390 Milling Inserts
1173679
MFG #: 5745604
Sandvik Coromant
31.41000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..E-ML Insert, L-Rectangle, 0.378 in Inscribed Circle, 0.1874 in Thickness, 0.378 in Width, 0.687 in Length, ML Chipbreaker, 0.031 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: 2040, ANSI Code: R390-17 04 08E-ML 2040, ISO Code: R390-17 04 08E-ML 2040, Right Hand, Carbide, MTCVD Coated, Material Grade: M/P/S
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 19 deg clearance |
| 15.7 mm D cutting |
| 1.5 mm L wiper edge |
| 90 deg major cutting edge |
| 15.7 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| F cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
| 0.04 to 0.15 mm/r cutting feed |
