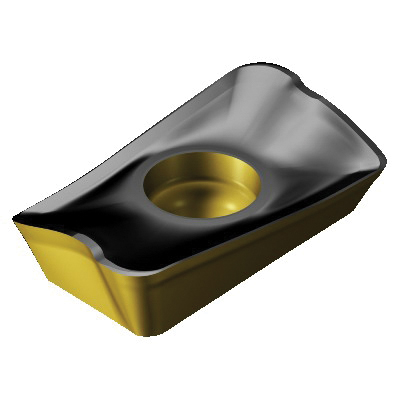

Sandvik Coromant 5745427 CoroMill® 390 Milling Insert, R390-11 T3 04M-PM 4220, L-Rectangle, R390..M-PM Insert, Carbide, 4220, R390-11 T3 04M-PM 4220
Custom_Product_Images_Illustration
Sandvik Coromant 5745427 CoroMill® 390 Milling Insert, R390-11 T3 04M-PM 4220, L-Rectangle, R390..M-PM Insert, Carbide, 4220, R390-11 T3 04M-PM 4220
SKU434251
MFGR #5745427
Your Cost: $20.94/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..M-PM Insert, L-Rectangle, 0.268 in Inscribed Circle, 0.1413 in Thickness, 0.268 in Width, 0.4507 in Length, PM Chipbreaker, 0.016 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1102 in Hole Dia, Manufacturer's Grade: 4220, ANSI Code: R390-11 T3 04M-PM 4220, ISO Code: R390-11 T3 04M-PM 4220, Right Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..M-PM Insert, L-Rectangle, 0.268 in Inscribed Circle, 0.1413 in Thickness, 0.268 in Width, 0.4507 in Length, PM Chipbreaker, 0.016 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1102 in Hole Dia, Manufacturer's Grade: 4220, ANSI Code: R390-11 T3 04M-PM 4220, ISO Code: R390-11 T3 04M-PM 4220, Right Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number R390-11 T3 04M-PM 4220 ANSI Code R390-11 T3 04M-PM 4220 Brand Sandvik Coromant Catalog Number 5745427 Chipbreaker PM Corner Radius 0.016 in Country of Origin JP Finish MTCVD Coated Gross Weight Per Pack 1 lb Hand of Insert Right Includes 3.59 mm Insert Size MTCVD Coated Insert Style R390..M-PM ISO Code R390-11 T3 04M-PM 4220 Item Group 350 Lead Angle 90 deg Manufacturer Sandvik Coromant Manufacturer's Grade 4220 Material Carbide Material Application Cast Iron and Steel Material Grade K/P Maximum Depth of Cut L - Rectangle Rake Positive Series CoroMill® 390 Shape L-Rectangle Stock Status NONSTOCK Type 4220 UPC 11 69826240063 UPC 12 69826240063 Width UOM IN
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Alternate Catalog Number | R390-11 T3 04M-PM 4220 |
| ANSI Code | R390-11 T3 04M-PM 4220 |
| Brand | Sandvik Coromant |
| Catalog Number | 5745427 |
| Chipbreaker | PM |
| Corner Radius | 0.016 in |
| Country of Origin | JP |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Right |
| Includes | 3.59 mm |
| Insert Size | MTCVD Coated |
| Insert Style | R390..M-PM |
| ISO Code | R390-11 T3 04M-PM 4220 |
| Item Group | 350 |
| Lead Angle | 90 deg |
| Manufacturer | Sandvik Coromant |
| Manufacturer's Grade | 4220 |
| Material | Carbide |
| Material Application | Cast Iron and Steel |
| Material Grade | K/P |
| Maximum Depth of Cut | L - Rectangle |
| Rake | Positive |
| Series | CoroMill® 390 |
| Shape | L-Rectangle |
| Stock Status | NONSTOCK |
| Type | 4220 |
| UPC 11 | 69826240063 |
| UPC 12 | 69826240063 |
| Width UOM | IN |
