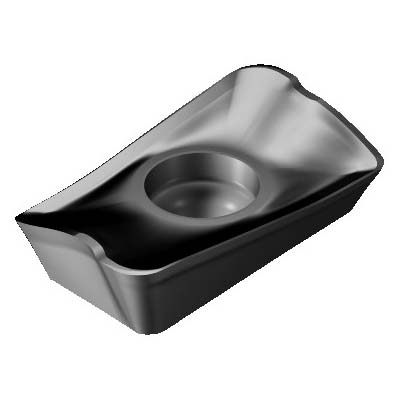

Sandvik Coromant 5745423 CoroMill® 390 Milling Insert, R390-11 T3 04M-KM 3040, L-Rectangle, R390-11..M-KM Insert, Carbide, 3040, R390-11 T3 04M-KM 3040
Custom_Product_Images_Illustration
Sandvik Coromant 5745423 CoroMill® 390 Milling Insert, R390-11 T3 04M-KM 3040, L-Rectangle, R390-11..M-KM Insert, Carbide, 3040, R390-11 T3 04M-KM 3040
SKU58512
MFGR #5745423
Your Cost: $26.40/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390-11..M-KM Insert, L-Rectangle, 0.268 in Inscribed Circle, 0.1413 in Thickness, 0.268 in Width, 0.4507 in Length, KM Chipbreaker, 0.016 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1102 in Hole Dia, Manufacturer's Grade: 3040, ANSI Code: R390-11 T3 04M-KM 3040, ISO Code: R390-11 T3 04M-KM 3040, Right Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390-11..M-KM Insert, L-Rectangle, 0.268 in Inscribed Circle, 0.1413 in Thickness, 0.268 in Width, 0.4507 in Length, KM Chipbreaker, 0.016 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1102 in Hole Dia, Manufacturer's Grade: 3040, ANSI Code: R390-11 T3 04M-KM 3040, ISO Code: R390-11 T3 04M-KM 3040, Right Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number R390-11 T3 04M-KM 3040 ANSI Code R390-11 T3 04M-KM 3040 Catalog Number 5745423 Corner Radius 0.016 in Country of Origin IN Finish MTCVD Coated Gross Weight Per Pack 1 lb Hand of Insert Right Hole Diameter 0.1102 in Includes 6.8 mm ISO Code R390-11 T3 04M-KM 3040 Item Group 350 Lead Angle 90 deg Length 0.4507 in Series CoroMill® 390 Thickness 0.1413 in Type 3.59 mm UPC 11 69826216561 UPC 12 69826216561 Width 0.268 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KM Inscribed Circle 0.268 in Insert Size L - Rectangle Insert Style R390-11..M-KM Manufacturer's Grade 3040 Material Carbide Material Grade K Rake Positive Shape L-Rectangle 40 to 60 deg countersunk hole and non-flat surface clamping interface 21 deg clearance 10 mm D cutting 0.9 mm L wiper edge 90 deg major cutting edge 10 mm L effective cutting edge 1-side cutting 20 life cycle state 2 corner E cutting edge condition 2 cutting edge Screw clamp mounting 0.08 to 0.15 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R390-11 T3 04M-KM 3040 |
| ANSI Code | R390-11 T3 04M-KM 3040 |
| Catalog Number | 5745423 |
| Corner Radius | 0.016 in |
| Country of Origin | IN |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1102 in |
| Includes | 6.8 mm |
| ISO Code | R390-11 T3 04M-KM 3040 |
| Item Group | 350 |
| Lead Angle | 90 deg |
| Length | 0.4507 in |
| Series | CoroMill® 390 |
| Thickness | 0.1413 in |
| Type | 3.59 mm |
| UPC 11 | 69826216561 |
| UPC 12 | 69826216561 |
| Width | 0.268 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KM |
| Inscribed Circle | 0.268 in |
| Insert Size | L - Rectangle |
| Insert Style | R390-11..M-KM |
| Manufacturer's Grade | 3040 |
| Material | Carbide |
| Material Grade | K |
| Rake | Positive |
| Shape | L-Rectangle |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 21 deg clearance |
| 10 mm D cutting |
| 0.9 mm L wiper edge |
| 90 deg major cutting edge |
| 10 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
| 0.08 to 0.15 mm/r cutting feed |
