Sandvik Coromant

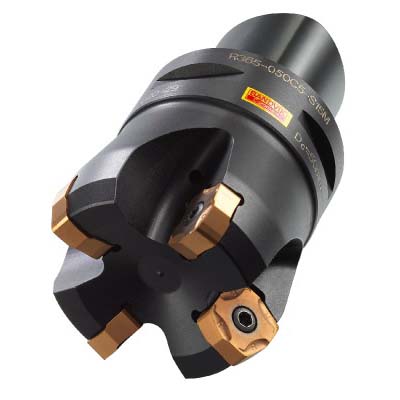

Sandvik Coromant 5745386 CoroMill® 365 Face Milling Cutter, 1.9685 in Cutting, 1.9685 in Shank, 3.5433 in OAL, R/L365..Cx Insert, 0.2362 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5745386 CoroMill® 365 Face Milling Cutter, 1.9685 in Cutting, 1.9685 in Shank, 3.5433 in OAL, R/L365..Cx Insert, 0.2362 in Max Depth of Cut
SKU1234722
MFGR #5745386
Your Cost: $670.08/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 365, 1.9685 in Cutting Dia, 3.5433 in Overall Length, 0.2362 in Maximum Depth of Cut, R/L365..Cx Insert, 4 Inserts, Insert Compatibility: R365-1505ZNE, 1.9685 in Shank Dia, Right Hand Cutting, 65 deg Cutting Angle, ANSI Code: R365-050C5-S15M, ISO Code: R365-050C5-S15M, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 365, 1.9685 in Cutting Dia, 3.5433 in Overall Length, 0.2362 in Maximum Depth of Cut, R/L365..Cx Insert, 4 Inserts, Insert Compatibility: R365-1505ZNE, 1.9685 in Shank Dia, Right Hand Cutting, 65 deg Cutting Angle, ANSI Code: R365-050C5-S15M, ISO Code: R365-050C5-S15M, Steel
ANSI Code R365-050C5-S15M Catalog Number 5745386 Country of Origin SE Gross Weight Per Pack 2.9800 lb ISO Code R365-050C5-S15M Material Steel Series CoroMill® 365 UPC 11 69826235408 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 1.9685 in Cutting Angle 65 ° Cutting Diameter 1.9685 in Cutting Direction Right Hand Insert Compatibility R365-1505ZNE Insert Style R/L365..Cx Maximum Depth of Cut 0.2362 in Number of Inserts 4 Overall Length 3.5433 in Shank Diameter 1.9685 in Shank Type Coromant Capto® Through Coolant Yes Axial concentric and radial coolant entry Differential cutting pitch Bolt and segment clamping adaptive interface 40 - 60 deg insert screw clamping interface 56.7 mm Dia maximum cutting 60 mm overhang 0 deg maximum ramping 15700 r/min 3 Nm torque 20 life cycle state Bolt and segment clamping adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | R365-050C5-S15M |
| Catalog Number | 5745386 |
| Country of Origin | SE |
| Gross Weight Per Pack | 2.9800 lb |
| ISO Code | R365-050C5-S15M |
| Material | Steel |
| Series | CoroMill® 365 |
| UPC 11 | 69826235408 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 1.9685 in |
| Cutting Angle | 65 ° |
| Cutting Diameter | 1.9685 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | R365-1505ZNE |
| Insert Style | R/L365..Cx |
| Maximum Depth of Cut | 0.2362 in |
| Number of Inserts | 4 |
| Overall Length | 3.5433 in |
| Shank Diameter | 1.9685 in |
| Shank Type | Coromant Capto® |
| Through Coolant | Yes |
| Axial concentric and radial coolant entry |
| Differential cutting pitch |
| Bolt and segment clamping adaptive interface |
| 40 - 60 deg insert screw clamping interface |
| 56.7 mm Dia maximum cutting |
| 60 mm overhang |
| 0 deg maximum ramping |
| 15700 r/min |
| 3 Nm torque |
| 20 life cycle state |
| Bolt and segment clamping adaptive interface |
