Sandvik Coromant
Sandvik Coromant 5745379 CoroMill® 365 Milling Insert, R365-1505ZNE-KL 1020, R/L365..E-KL Insert, Carbide, 1020, R365-1505ZNE-KL 1020

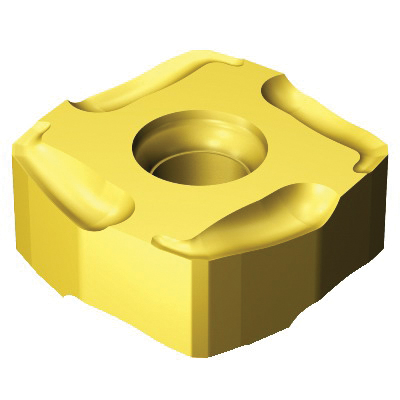

Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5745379 CoroMill® 365 Milling Insert, R365-1505ZNE-KL 1020, R/L365..E-KL Insert, Carbide, 1020, R365-1505ZNE-KL 1020
SKU1234737
MFGR #5745379
Your Cost: $38.28/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 365, R/L365..E-KL Insert, 0.5905 in Inscribed Circle, 0.2228 in Thickness, 0.5118 in Length, KL Chipbreaker, 0.0118 in Corner Radius, 20 deg Negative Rake, 25 deg Lead Angle, 0.1811 in Hole Dia, Manufacturer's Grade: 1020, ANSI Code: R365-1505ZNE-KL 1020, ISO Code: R365-1505ZNE-KL 1020, Right Hand, Carbide, PVD Coated, Material Grade: K
Sandvik Coromant Milling Insert, Series: CoroMill® 365, R/L365..E-KL Insert, 0.5905 in Inscribed Circle, 0.2228 in Thickness, 0.5118 in Length, KL Chipbreaker, 0.0118 in Corner Radius, 20 deg Negative Rake, 25 deg Lead Angle, 0.1811 in Hole Dia, Manufacturer's Grade: 1020, ANSI Code: R365-1505ZNE-KL 1020, ISO Code: R365-1505ZNE-KL 1020, Right Hand, Carbide, PVD Coated, Material Grade: K
Alternate Catalog Number R365-1505ZNE-KL 1020 ANSI Code R365-1505ZNE-KL 1020 Catalog Number 5745379 Corner Radius 0.012 in Country of Origin SE Finish PVD-TiAlN Coated Gross Weight Per Pack 0.3600 lb Hand of Insert Right Hole Diameter 0.1811 in ISO Code R365-1505ZNE-KL 1020 Item Group 350 Lead Angle 65 ° Material Application Cast Iron Series CoroMill® 365 Thickness 0.223 in UPC 11 69826237892 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KL Inscribed Circle 0.591 in Insert Size 1505 Insert Style R/L365..E-KL Manufacturer's Grade 1020 Material Carbide Material Grade K Shape Rectangle 40 - 60 deg countersunk hole and non-flat surface clamping interface 0 deg clearance 6 mm D cutting 0.82 mm L x 0.71 mm W corner chamfer 1.5 mm L wiper edge 150 mm wiper edge radius 65 deg major cutting edge 35 deg corner chamfer 6.4 mm L effective cutting edge 2-side cutting 20 life cycle state 4 corner S cutting edge condition 8 cutting edge Screw clamp mounting 0.12 - 0.31 mm/r cutting feed
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | R365-1505ZNE-KL 1020 |
| ANSI Code | R365-1505ZNE-KL 1020 |
| Catalog Number | 5745379 |
| Corner Radius | 0.012 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN Coated |
| Gross Weight Per Pack | 0.3600 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1811 in |
| ISO Code | R365-1505ZNE-KL 1020 |
| Item Group | 350 |
| Lead Angle | 65 ° |
| Material Application | Cast Iron |
| Series | CoroMill® 365 |
| Thickness | 0.223 in |
| UPC 11 | 69826237892 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KL |
| Inscribed Circle | 0.591 in |
| Insert Size | 1505 |
| Insert Style | R/L365..E-KL |
| Manufacturer's Grade | 1020 |
| Material | Carbide |
| Material Grade | K |
| Shape | Rectangle |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 0 deg clearance |
| 6 mm D cutting |
| 0.82 mm L x 0.71 mm W corner chamfer |
| 1.5 mm L wiper edge |
| 150 mm wiper edge radius |
| 65 deg major cutting edge |
| 35 deg corner chamfer |
| 6.4 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 4 corner |
| S cutting edge condition |
| 8 cutting edge |
| Screw clamp mounting |
| 0.12 - 0.31 mm/r cutting feed |
