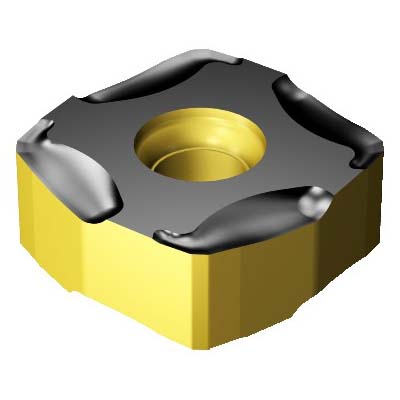

Sandvik Coromant 5745349 CoroMill® 365 Milling Insert, R365-1505ZNE-PM 4220, R/L365..E-PM Insert, Carbide, 4220, R365-1505ZNE-PM 4220
R365/L365 Milling Inserts
1148300
MFG #: 5745349
Sandvik Coromant
30.68000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® 365, R/L365..E-PM Insert, 0.5905 in Inscribed Circle, 0.2228 in Thickness, 0.5118 in Length, PM Chipbreaker, 0.0118 in Corner Radius, 1 deg Negative Rake, 25 deg Lead Angle, 0.1811 in Hole Dia, Manufacturer's Grade: 4220, ANSI Code: R365-1505ZNE-PM 4220, ISO Code: R365-1505ZNE-PM 4220, Right Hand, Carbide, MTCVD Coated, Material Grade: K/P
- Features
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 0 deg clearance |
| 6 mm D cutting |
| 0.82 mm L x 0.71 mm W corner chamfer |
| 1.5 mm L wiper edge |
| 150 mm wiper edge radius |
| 65 deg major cutting edge |
| 35 deg corner chamfer |
| 6.4 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 4 corner |
| S cutting edge condition |
| 8 cutting edge |
| Screw clamp mounting |
| 0.4 - 0.39 mm/r cutting feed |
