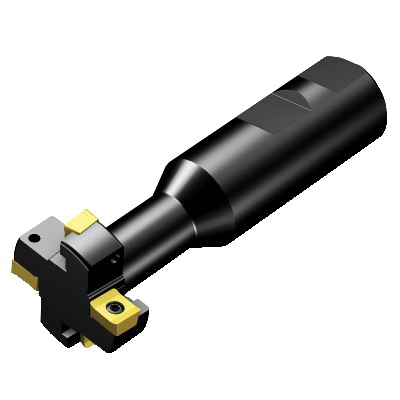

Sandvik Coromant 5745277 CoroMill® 331 Full Side and Face Disc Milling Cutter, 3 in Cutting, 1-1/4 in Shank, 4.14 in OAL, R331.35..Mxx Insert, 0.85 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 5745277 CoroMill® 331 Full Side and Face Disc Milling Cutter, 3 in Cutting, 1-1/4 in Shank, 4.14 in OAL, R331.35..Mxx Insert, 0.85 in Max Depth of Cut
SKU1234931
MFGR #5745277
$/ea
Sandvik Coromant Disc Milling Cutter, Full Side and Face, Series: CoroMill® 331, 3 in Cutting Dia, 4.14 in Overall Length, 0.85 in Maximum Depth of Cut, R331.35..Mxx Insert, 8 Inserts, Insert Compatibility: N/L331.1A-05RE1.55-2.60, N/R331.1A-05RE1.55-2.60, 1-1/4 in Shank Dia, Right Hand Cutting, 90 deg Cutting Angle, ANSI Code: R331.35-076M32EMA06, ISO Code: R331.35-076M32EMA06, Steel
Sandvik Coromant Disc Milling Cutter, Full Side and Face, Series: CoroMill® 331, 3 in Cutting Dia, 4.14 in Overall Length, 0.85 in Maximum Depth of Cut, R331.35..Mxx Insert, 8 Inserts, Insert Compatibility: N/L331.1A-05RE1.55-2.60, N/R331.1A-05RE1.55-2.60, 1-1/4 in Shank Dia, Right Hand Cutting, 90 deg Cutting Angle, ANSI Code: R331.35-076M32EMA06, ISO Code: R331.35-076M32EMA06, Steel
ANSI Code R331.35-076M32EMA06 Catalog Number 5745277 Country of Origin SE Gross Weight Per Pack 2.8900 lb ISO Code R331.35-076M32EMA06 Lead Angle 90 ° Material Steel Series CoroMill® 331 Type Full Side and Face UPC 11 69826213742 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 1-1/4 in Cutting Angle 90 ° Cutting Diameter 3 in Cutting Direction Right Hand Insert Compatibility N/L331.1A-05RE1.55-2.60, N/R331.1A-05RE1.55-2.60 Insert Style R331.35..Mxx Maximum Depth of Cut 0.85 in Number of Inserts 8 Overall Length 4.14 in Shank Diameter 1-1/4 in Shank Type Weldon Through Coolant No 40 - 60 deg insert screw clamping Without coolant entry Differential cutting pitch 9.525 mm W cutting 74.6 mm Dia cutting face contact 29.36 mm H shank 20 life cycle state 105.156 mm L functional 47.216 mm maximum overhang 15000 r/min 1.2 Nm torque
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | R331.35-076M32EMA06 |
| Catalog Number | 5745277 |
| Country of Origin | SE |
| Gross Weight Per Pack | 2.8900 lb |
| ISO Code | R331.35-076M32EMA06 |
| Lead Angle | 90 ° |
| Material | Steel |
| Series | CoroMill® 331 |
| Type | Full Side and Face |
| UPC 11 | 69826213742 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 1-1/4 in |
| Cutting Angle | 90 ° |
| Cutting Diameter | 3 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | N/L331.1A-05RE1.55-2.60, N/R331.1A-05RE1.55-2.60 |
| Insert Style | R331.35..Mxx |
| Maximum Depth of Cut | 0.85 in |
| Number of Inserts | 8 |
| Overall Length | 4.14 in |
| Shank Diameter | 1-1/4 in |
| Shank Type | Weldon |
| Through Coolant | No |
| 40 - 60 deg insert screw clamping |
| Without coolant entry |
| Differential cutting pitch |
| 9.525 mm W cutting |
| 74.6 mm Dia cutting face contact |
| 29.36 mm H shank |
| 20 life cycle state |
| 105.156 mm L functional |
| 47.216 mm maximum overhang |
| 15000 r/min |
| 1.2 Nm torque |
