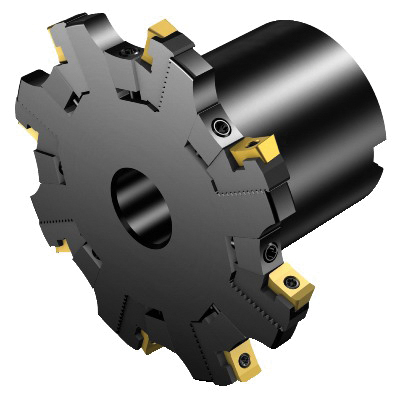

Sandvik Coromant 5745269 CoroMill® 331 Adjustable Half Side/Back Face Disc Milling Cutter, 3.1496 in Cutting, 1.0629 in Shank
Custom_Product_Images_Illustration
Sandvik Coromant 5745269 CoroMill® 331 Adjustable Half Side/Back Face Disc Milling Cutter, 3.1496 in Cutting, 1.0629 in Shank
SKU1234457
MFGR #5745269
$/ea
Sandvik Coromant Disc Milling Cutter, Adjustable Half Side/Back Face, Series: CoroMill® 331, 3.1496 in Cutting Dia, 2.4409 in Overall Length, 0.787 in Maximum Depth of Cut, R331.52..Qxx..L Insert, 6 Inserts, Insert Compatibility: N/R331.1A-08RE0.20-1.54, 1.0629 in Shank Dia, Right Hand Cutting, 90 deg Cutting Angle, ANSI Code: R331.52-080Q27FML, ISO Code: R331.52-080Q27FML, Steel
Sandvik Coromant Disc Milling Cutter, Adjustable Half Side/Back Face, Series: CoroMill® 331, 3.1496 in Cutting Dia, 2.4409 in Overall Length, 0.787 in Maximum Depth of Cut, R331.52..Qxx..L Insert, 6 Inserts, Insert Compatibility: N/R331.1A-08RE0.20-1.54, 1.0629 in Shank Dia, Right Hand Cutting, 90 deg Cutting Angle, ANSI Code: R331.52-080Q27FML, ISO Code: R331.52-080Q27FML, Steel
ANSI Code R331.52-080Q27FML Catalog Number 5745269 Country of Origin SE Gross Weight Per Pack 2.1600 lb Head Length 90 deg Insert Gage Screw 27 mm ISO Code R331.52-080Q27FML Material Steel Series CoroMill® 331 Standards ISO 6462:2011 Type Adjustable Half Side/Back Face UPC 11 69826231024 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Cutting Angle 90 deg Cutting Diameter 3.1496 in Cutting Direction Right Hand Insert Compatibility N/R331.1A-08RE0.20-1.54 Insert Style R331.52..Qxx..L Maximum Depth of Cut 0.787 in Number of Inserts 6 Overall Length 2.4409 in Shank Diameter 1.0629 in Shank Length R331.52-080Q27FML Shank Type Right Hand Without coolant entry 78.4 mm Dia cutting face contact 54 mm Dia hub 12.4 mm W keyway 20 life cycle state 51 mm L functional 62 mm L protruding 51 mm maximum overhang 0 deg maximum ramping 18100 r/min
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | R331.52-080Q27FML |
| Catalog Number | 5745269 |
| Country of Origin | SE |
| Gross Weight Per Pack | 2.1600 lb |
| Head Length | 90 deg |
| Insert Gage Screw | 27 mm |
| ISO Code | R331.52-080Q27FML |
| Material | Steel |
| Series | CoroMill® 331 |
| Standards | ISO 6462:2011 |
| Type | Adjustable Half Side/Back Face |
| UPC 11 | 69826231024 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Cutting Angle | 90 deg |
| Cutting Diameter | 3.1496 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | N/R331.1A-08RE0.20-1.54 |
| Insert Style | R331.52..Qxx..L |
| Maximum Depth of Cut | 0.787 in |
| Number of Inserts | 6 |
| Overall Length | 2.4409 in |
| Shank Diameter | 1.0629 in |
| Shank Length | R331.52-080Q27FML |
| Shank Type | Right Hand |
| Without coolant entry |
| 78.4 mm Dia cutting face contact |
| 54 mm Dia hub |
| 12.4 mm W keyway |
| 20 life cycle state |
| 51 mm L functional |
| 62 mm L protruding |
| 51 mm maximum overhang |
| 0 deg maximum ramping |
| 18100 r/min |
