Sandvik Coromant 5745105 CoroMill® 331 Adjustable Half Side/Face Disc Milling Cutter, 4 in Cutting, 2 in Shank, 5.1196 in OAL

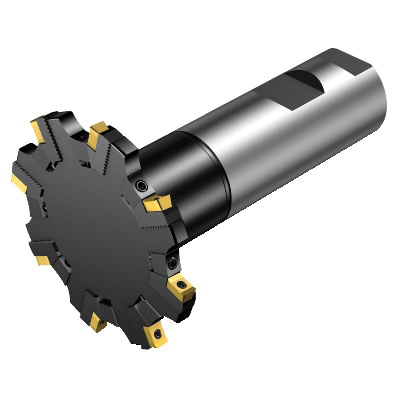

Custom_Product_Images_Illustration
Sandvik Coromant 5745105 CoroMill® 331 Adjustable Half Side/Face Disc Milling Cutter, 4 in Cutting, 2 in Shank, 5.1196 in OAL
SKU1234444
MFGR #5745105
$/ea
Sandvik Coromant Disc Milling Cutter, Adjustable Half Side/Face, Series: CoroMill® 331, 4 in Cutting Dia, 5.1196 in Overall Length, 0.945 in Maximum Depth of Cut, R331.52..Mxx..R Insert, 8 Inserts, Insert Compatibility: N/R331.1A-08RE0.20-1.54, 2 in Shank Dia, Right Hand Cutting, 90 deg Cutting Angle, ANSI Code: R331.52-101M51EMR, ISO Code: R331.52-101M51EMR, Steel
Sandvik Coromant Disc Milling Cutter, Adjustable Half Side/Face, Series: CoroMill® 331, 4 in Cutting Dia, 5.1196 in Overall Length, 0.945 in Maximum Depth of Cut, R331.52..Mxx..R Insert, 8 Inserts, Insert Compatibility: N/R331.1A-08RE0.20-1.54, 2 in Shank Dia, Right Hand Cutting, 90 deg Cutting Angle, ANSI Code: R331.52-101M51EMR, ISO Code: R331.52-101M51EMR, Steel
ANSI Code R331.52-101M51EMR Catalog Number 5745105 Country of Origin SE Finish 5513020-24 Gross Weight Per Pack 4.1800 lb Head Length 50.8 mm Insert Gage Screw 50.8 mm ISO Code R331.52-101M51EMR Lead Angle 90 Material Steel Series CoroMill® 331 Type Adjustable Half Side/Face UPC 11 69826209678 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Arbor Hole Diameter 2 Cutting Angle 90 deg Cutting Diameter 4 in Cutting Direction Right Hand Insert Compatibility N/R331.1A-08RE0.20-1.54 Insert Style R331.52..Mxx..R Maximum Depth of Cut 0.945 in Number of Inserts 8 Overall Length 5.1196 in Shank Diameter 2 in Shank Length 5757635 Key, 5758978 Screw, 5762372 Cassette Right, 5762447 Cover, 5762817 Wedge, 5763159 Insert Screw and 5764103 Screwdriver Shank Type Steel 40 - 60 deg insert screw clamping Without coolant entry 100 mm Dia cutting face contact 48.26 mm H shank 20 life cycle state 130.0404 mm L functional 47.4904 mm maximum overhang 0 deg maximum ramping 15900 r/min 1.2 Nm torque
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | R331.52-101M51EMR |
| Catalog Number | 5745105 |
| Country of Origin | SE |
| Finish | 5513020-24 |
| Gross Weight Per Pack | 4.1800 lb |
| Head Length | 50.8 mm |
| Insert Gage Screw | 50.8 mm |
| ISO Code | R331.52-101M51EMR |
| Lead Angle | 90 |
| Material | Steel |
| Series | CoroMill® 331 |
| Type | Adjustable Half Side/Face |
| UPC 11 | 69826209678 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Arbor Hole Diameter | 2 |
| Cutting Angle | 90 deg |
| Cutting Diameter | 4 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | N/R331.1A-08RE0.20-1.54 |
| Insert Style | R331.52..Mxx..R |
| Maximum Depth of Cut | 0.945 in |
| Number of Inserts | 8 |
| Overall Length | 5.1196 in |
| Shank Diameter | 2 in |
| Shank Length | 5757635 Key, 5758978 Screw, 5762372 Cassette Right, 5762447 Cover, 5762817 Wedge, 5763159 Insert Screw and 5764103 Screwdriver |
| Shank Type | Steel |
| 40 - 60 deg insert screw clamping |
| Without coolant entry |
| 100 mm Dia cutting face contact |
| 48.26 mm H shank |
| 20 life cycle state |
| 130.0404 mm L functional |
| 47.4904 mm maximum overhang |
| 0 deg maximum ramping |
| 15900 r/min |
| 1.2 Nm torque |
