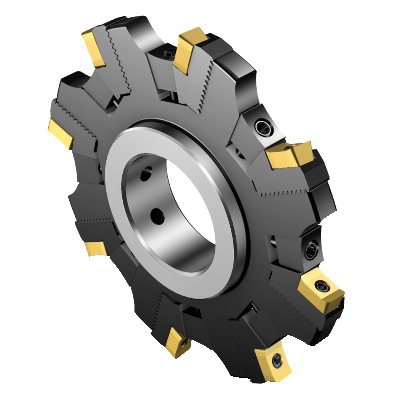

Sandvik Coromant 5745008 CoroMill® 331 Adjustable Half Side/Face Disc Milling Cutter, 9.8425 in Cutting, 1.9685 in Shank, 1.2283 in OAL, R/L331.52..Sxx Insert, 3.524 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 5745008 CoroMill® 331 Adjustable Half Side/Face Disc Milling Cutter, 9.8425 in Cutting, 1.9685 in Shank, 1.2283 in OAL, R/L331.52..Sxx Insert, 3.524 in Max Depth of Cut
SKU1234491
MFGR #5745008
Your Cost: $4,758.57/ea
Sandvik Coromant Disc Milling Cutter, Adjustable Half Side/Face, Series: CoroMill® 331, 9.8425 in Cutting Dia, 1.2283 in Overall Length, 3.524 in Maximum Depth of Cut, R/L331.52..Sxx Insert, 16 Inserts, Insert Compatibility: N/R331.1A-11RE0.20-1.54, 1.9685 in Shank Dia, Right Hand Cutting, 90 deg Cutting Angle, ANSI Code: R331.52-250S50MM, ISO Code: R331.52-250S50MM, Steel
Sandvik Coromant Disc Milling Cutter, Adjustable Half Side/Face, Series: CoroMill® 331, 9.8425 in Cutting Dia, 1.2283 in Overall Length, 3.524 in Maximum Depth of Cut, R/L331.52..Sxx Insert, 16 Inserts, Insert Compatibility: N/R331.1A-11RE0.20-1.54, 1.9685 in Shank Dia, Right Hand Cutting, 90 deg Cutting Angle, ANSI Code: R331.52-250S50MM, ISO Code: R331.52-250S50MM, Steel
Alternate Catalog Number R331.52-250S50MM ANSI Code R331.52-250S50MM Catalog Number 5745008 Country of Origin SE Finish Adjustable, Half Side and Face Gross Weight Per Pack 20.9000 lb Head Length CoroMill® 331 Insert Gage Screw 50 mm ISO Code R331.52-250S50MM Item Group 450 Material Steel Series CoroMill® 331 Type Adjustable Half Side/Face UPC 11 69826231070 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Angle 90 deg Cutting Diameter 9.8425 in Cutting Direction Right Hand Insert Compatibility N/R331.1A-11RE0.20-1.54 Insert Style R/L331.52..Sxx Maximum Depth of Cut 3.524 in Number of Inserts 16 Overall Length 1.2283 in Shank Diameter 1.9685 in Shank Length 31.2 mm Shank Type R/L331.52..Sxx 40 - 60 deg insert screw clamping Without coolant entry 248.4 mm Dia cutting face contact 69 mm x 31.2 mm THK hub 2-drive 12 mm w keyway 20 life cycle state 29.2 mm L functional 29.2 mm maximum overhang 0 deg maximum ramping 8500 r/min 3 Nm torque
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | R331.52-250S50MM |
| ANSI Code | R331.52-250S50MM |
| Catalog Number | 5745008 |
| Country of Origin | SE |
| Finish | Adjustable, Half Side and Face |
| Gross Weight Per Pack | 20.9000 lb |
| Head Length | CoroMill® 331 |
| Insert Gage Screw | 50 mm |
| ISO Code | R331.52-250S50MM |
| Item Group | 450 |
| Material | Steel |
| Series | CoroMill® 331 |
| Type | Adjustable Half Side/Face |
| UPC 11 | 69826231070 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Angle | 90 deg |
| Cutting Diameter | 9.8425 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | N/R331.1A-11RE0.20-1.54 |
| Insert Style | R/L331.52..Sxx |
| Maximum Depth of Cut | 3.524 in |
| Number of Inserts | 16 |
| Overall Length | 1.2283 in |
| Shank Diameter | 1.9685 in |
| Shank Length | 31.2 mm |
| Shank Type | R/L331.52..Sxx |
| 40 - 60 deg insert screw clamping |
| Without coolant entry |
| 248.4 mm Dia cutting face contact |
| 69 mm x 31.2 mm THK hub |
| 2-drive |
| 12 mm w keyway |
| 20 life cycle state |
| 29.2 mm L functional |
| 29.2 mm maximum overhang |
| 0 deg maximum ramping |
| 8500 r/min |
| 3 Nm torque |
