Sandvik Coromant

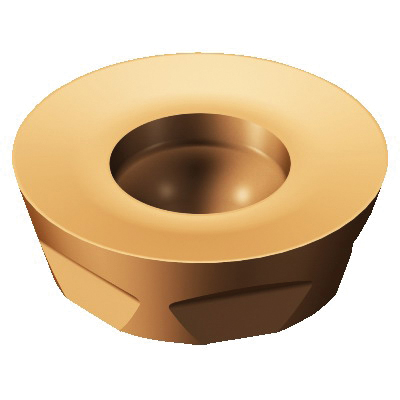

Sandvik Coromant 5744592 CoroMill® 300 Milling Insert, R300-1648E-PL 1030, R-Round, R300..E-PL Insert, Carbide, 1030, R300-1648E-PL 1030
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5744592 CoroMill® 300 Milling Insert, R300-1648E-PL 1030, R-Round, R300..E-PL Insert, Carbide, 1030, R300-1648E-PL 1030
SKU1251004
MFGR #5744592
Your Cost: $24.27/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..E-PL Insert, R-Round, 0.6299 in Inscribed Circle, 0.1874 in Thickness, PL Chipbreaker, 0.3149 in Corner Radius, Positive Rake, 15 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: R300-1648E-PL 1030, ISO Code: R300-1648E-PL 1030, Neutral Hand, Carbide, PVD Coated, Material Grade: H/M/P/S
Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..E-PL Insert, R-Round, 0.6299 in Inscribed Circle, 0.1874 in Thickness, PL Chipbreaker, 0.3149 in Corner Radius, Positive Rake, 15 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: R300-1648E-PL 1030, ISO Code: R300-1648E-PL 1030, Neutral Hand, Carbide, PVD Coated, Material Grade: H/M/P/S
ANSI Code R300-1648E-PL 1030 Catalog Number 5744592 Corner Radius 0.3149 in Country of Origin US Finish PVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.2244 in Included Angle R - Round ISO Code R300-1648E-PL 1030 Lead Angle 15 deg Length 4.7625 mm Material Application Hardened Material, Stainless Steel, Steel and Heat Resistant Super Alloys Series CoroMill® 300 Thickness 0.1874 in Type 5.7 mm UPC 11 69826235397 Width R300..E-PL Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PL Inscribed Circle 0.6299 in Insert Size H, M, P, S Insert Style R300..E-PL Manufacturer's Grade 1030 Material Carbide Material Grade H/M/P/S Rake Positive Shape R-Round 40 to 60 deg countersunk hole and non-flat surface clamping interface 15 deg clearance 4 mm D cutting 1-side cutting 20 life cycle state 6 corner F cutting edge condition 6 cutting edge Screw clamp mounting 0.05 to 0.28 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | R300-1648E-PL 1030 |
| Catalog Number | 5744592 |
| Corner Radius | 0.3149 in |
| Country of Origin | US |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2244 in |
| Included Angle | R - Round |
| ISO Code | R300-1648E-PL 1030 |
| Lead Angle | 15 deg |
| Length | 4.7625 mm |
| Material Application | Hardened Material, Stainless Steel, Steel and Heat Resistant Super Alloys |
| Series | CoroMill® 300 |
| Thickness | 0.1874 in |
| Type | 5.7 mm |
| UPC 11 | 69826235397 |
| Width | R300..E-PL |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PL |
| Inscribed Circle | 0.6299 in |
| Insert Size | H, M, P, S |
| Insert Style | R300..E-PL |
| Manufacturer's Grade | 1030 |
| Material | Carbide |
| Material Grade | H/M/P/S |
| Rake | Positive |
| Shape | R-Round |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 15 deg clearance |
| 4 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 6 corner |
| F cutting edge condition |
| 6 cutting edge |
| Screw clamp mounting |
| 0.05 to 0.28 mm/r cutting feed |
