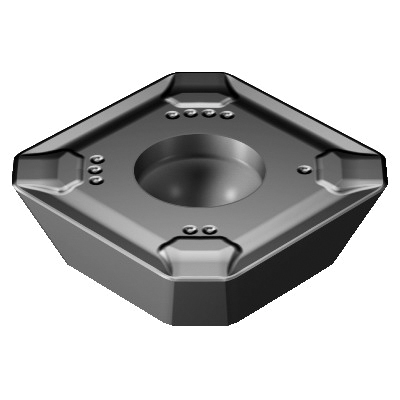

Sandvik Coromant 5743992 CoroMill® 245 Milling Insert, R245-12 T3 M-KM 3040, S-Square, R245..M-KM Insert, Carbide, 3040, R245-12 T3 M-KM 3040
R245 Milling Inserts
58138
MFG #: 5743992
Sandvik Coromant
19.77000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® 245, R245..M-KM Insert, S-Square, 0.5275 in Inscribed Circle, 0.1562 in Thickness, 0.5275 in Length, KM Chipbreaker, 0.059 in Corner Radius, 6 deg Positive Rake, 45 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: 3040, ANSI Code: R245-12 T3 M-KM 3040, ISO Code: R245-12 T3 M-KM 3040, Right Hand, Carbide, MTCVD Coated, Material Grade: H/K/P
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 20 deg clearance |
| 6.5 mm D cutting |
| 2 mm L wiper edge |
| 90 deg included |
| 45 deg major cutting edge |
| 10 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| S cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
| 0.1 to 0.28 mm/r cutting feed |
