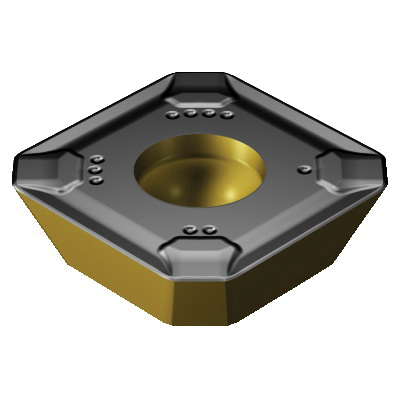

Sandvik Coromant 5743966 CoroMill® 245 Milling Insert, R245-12 T3 M-KL 3220, S-Square, R245..M-KL Insert, Carbide, 3220, R245-12 T3 M-KL 3220
R245 Milling Inserts
886324
MFG #: 5743966
Sandvik Coromant
18.63000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® 245, R245..M-KL Insert, S-Square, 0.5275 in Inscribed Circle, 0.1562 in Thickness, 0.5275 in Length, KL Chipbreaker, 0.059 in Corner Radius, 5 deg Positive Rake, 45 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: 3220, ANSI Code: R245-12 T3 M-KL 3220, ISO Code: R245-12 T3 M-KL 3220, Right Hand, Carbide, MTCVD Coated, Material Grade: K
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 20 deg clearance |
| 6.5 mm D cutting |
| 2 mm L wiper edge |
| 90 deg included |
| 45 deg major cutting edge |
| 10 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| S cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
| 0.08 to 0.21 mm/r cutting feed |
