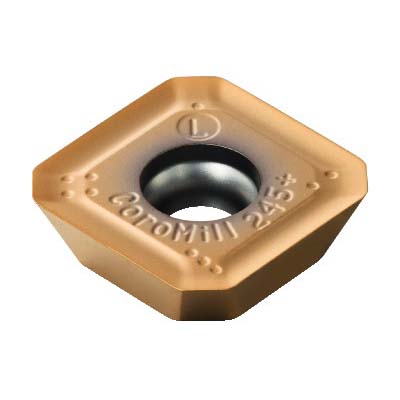

Sandvik Coromant 5743849 CoroMill® 245 Milling Insert, R245-12 T3 E-ML 1030 ANSI, S-Square, R245..E-ML Insert, Carbide, 1030
R245 Milling Inserts
1243618
MFG #: 5743849
Sandvik Coromant
20.67000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® 245, R245..E-ML Insert, S-Square, 0.5275 in Inscribed Circle, 0.1562 in Thickness, 0.5275 in Length, ML Chipbreaker, 0.059 in Corner Radius, 20 deg Positive Rake, 45 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: R245-12 T3 E-ML 1030, ISO Code: R245-12 T3 E-ML 1030, Right Hand, Carbide, PVD Coated, Material Grade: M/P/S
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 20 deg clearance |
| 6.5 mm D cutting |
| 2.1 mm L wiper edge |
| 200 mm wiper edge radius |
| 90 deg included |
| 45 deg major cutting edge |
| 10 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| F cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
| 0.05 to 0.11 mm/r cutting feed |
