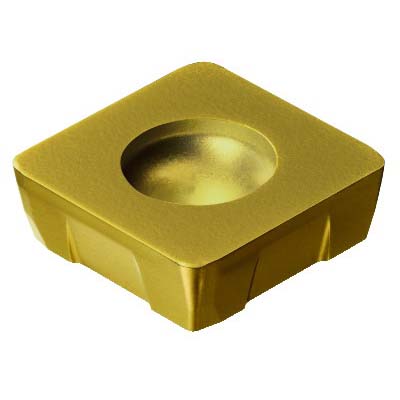

Sandvik Coromant 5742589 CoroMill® 210 Milling Insert, R210-09 04 12M-MM 2040, S-Square, R210..M-MM Insert, Carbide, 2040, R210-09 04 12M-MM 2040
Custom_Product_Images_Illustration
Sandvik Coromant 5742589 CoroMill® 210 Milling Insert, R210-09 04 12M-MM 2040, S-Square, R210..M-MM Insert, Carbide, 2040, R210-09 04 12M-MM 2040
SKU205874
MFGR #5742589
Your Cost: $17.91/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 210, R210..M-MM Insert, S-Square, 0.37 in Inscribed Circle, 0.1574 in Thickness, 1/2 in Length, MM Chipbreaker, 0.0393 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.1653 in Hole Dia, Manufacturer's Grade: 2040, ANSI Code: R210-09 04 12M-MM 2040, ISO Code: R210-09 04 12M-MM 2040, Right Hand, Carbide, MTCVD Coated, Material Grade: M/P/S
Sandvik Coromant Milling Insert, Series: CoroMill® 210, R210..M-MM Insert, S-Square, 0.37 in Inscribed Circle, 0.1574 in Thickness, 1/2 in Length, MM Chipbreaker, 0.0393 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.1653 in Hole Dia, Manufacturer's Grade: 2040, ANSI Code: R210-09 04 12M-MM 2040, ISO Code: R210-09 04 12M-MM 2040, Right Hand, Carbide, MTCVD Coated, Material Grade: M/P/S
Alternate Catalog Number R210-09 04 12M-MM 2040 ANSI Code R210-09 04 12M-MM 2040 Catalog Number 5742589 Corner Radius 0.0393 in Country of Origin US Finish MTCVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Right Hole Diameter 0.1653 in ISO Code R210-09 04 12M-MM 2040 Item Group 350 Lead Angle 80 deg Length 1/2 in Material Application Steel, Stainless Steel and Titanium Alloys Relief Angle 4 mm Series CoroMill® 210 Thickness 0.1574 in Type MTCVD Coated UPC 11 69826225600 UPC 12 69826225600 Width Right Width UOM IN Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MM Inscribed Circle 0.37 in Insert Size S - Square Insert Style R210..M-MM Manufacturer's Grade 2040 Material Carbide Material Grade M/P/S Rake Positive Shape S-Square 40 to 60 deg countersunk hole and non-flat surface clamping interface 7 deg clearance 1.1 mm D cutting 0.77 mm L wiper edge 90 deg included 10 deg major cutting edge 6.2 mm L effective cutting edge 1-side cutting 20 life cycle state 4 corner E cutting edge condition 4 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R210-09 04 12M-MM 2040 |
| ANSI Code | R210-09 04 12M-MM 2040 |
| Catalog Number | 5742589 |
| Corner Radius | 0.0393 in |
| Country of Origin | US |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1653 in |
| ISO Code | R210-09 04 12M-MM 2040 |
| Item Group | 350 |
| Lead Angle | 80 deg |
| Length | 1/2 in |
| Material Application | Steel, Stainless Steel and Titanium Alloys |
| Relief Angle | 4 mm |
| Series | CoroMill® 210 |
| Thickness | 0.1574 in |
| Type | MTCVD Coated |
| UPC 11 | 69826225600 |
| UPC 12 | 69826225600 |
| Width | Right |
| Width UOM | IN |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MM |
| Inscribed Circle | 0.37 in |
| Insert Size | S - Square |
| Insert Style | R210..M-MM |
| Manufacturer's Grade | 2040 |
| Material | Carbide |
| Material Grade | M/P/S |
| Rake | Positive |
| Shape | S-Square |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 7 deg clearance |
| 1.1 mm D cutting |
| 0.77 mm L wiper edge |
| 90 deg included |
| 10 deg major cutting edge |
| 6.2 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
