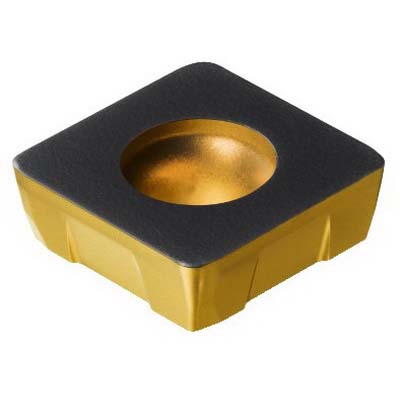

Sandvik Coromant 5742567 CoroMill® 210 Milling Insert, R210-14 05 12M-PM 4230 ANSI, S-Square, R210..M-PM Insert, Carbide, 4230
Custom_Product_Images_Illustration
Sandvik Coromant 5742567 CoroMill® 210 Milling Insert, R210-14 05 12M-PM 4230 ANSI, S-Square, R210..M-PM Insert, Carbide, 4230
SKU547107
MFGR #5742567
Your Cost: $19.86/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 210, R210..M-PM Insert, S-Square, 0.5708 in Inscribed Circle, 0.1874 in Thickness, 0.5708 in Length, PM Chipbreaker, 0.0393 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: 4230, ANSI Code: R210-14 05 12M-PM 4230, ISO Code: R210-14 05 12M-PM 4230, Right Hand, Carbide, MTCVD Coated, Material Grade: P
Sandvik Coromant Milling Insert, Series: CoroMill® 210, R210..M-PM Insert, S-Square, 0.5708 in Inscribed Circle, 0.1874 in Thickness, 0.5708 in Length, PM Chipbreaker, 0.0393 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: 4230, ANSI Code: R210-14 05 12M-PM 4230, ISO Code: R210-14 05 12M-PM 4230, Right Hand, Carbide, MTCVD Coated, Material Grade: P
ANSI Code R210-14 05 12M-PM 4230 Catalog Number 5742567 Corner Radius 0.0393 in Country of Origin US Finish MTCVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Right Hole Diameter 0.2244 in ISO Code R210-14 05 12M-PM 4230 Lead Angle 80 deg Length 0.5708 in Series CoroMill® 210 Thickness 0.1874 in Type CoroMill® 210 UPC 11 69826237850 UPC 12 69826237850 Width R210-14 05 12M-PM 4230 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Inscribed Circle 0.5708 in Insert Size 4.7625 mm Insert Style R210..M-PM Manufacturer's Grade 4230 Material Carbide Material Grade P Maximum Depth of Cut S - Square Rake Positive Shape S-Square 40 to 60 deg countersunk hole and non-flat surface clamping interface 7 deg clearance 2 mm D cutting 0.77 mm L wiper edge 90 deg included 10 deg major cutting edge 11.3 mm L effective cutting edge 1-side cutting 20 life cycle state 4 corner E cutting edge condition 4 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | R210-14 05 12M-PM 4230 |
| Catalog Number | 5742567 |
| Corner Radius | 0.0393 in |
| Country of Origin | US |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.2244 in |
| ISO Code | R210-14 05 12M-PM 4230 |
| Lead Angle | 80 deg |
| Length | 0.5708 in |
| Series | CoroMill® 210 |
| Thickness | 0.1874 in |
| Type | CoroMill® 210 |
| UPC 11 | 69826237850 |
| UPC 12 | 69826237850 |
| Width | R210-14 05 12M-PM 4230 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Inscribed Circle | 0.5708 in |
| Insert Size | 4.7625 mm |
| Insert Style | R210..M-PM |
| Manufacturer's Grade | 4230 |
| Material | Carbide |
| Material Grade | P |
| Maximum Depth of Cut | S - Square |
| Rake | Positive |
| Shape | S-Square |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 7 deg clearance |
| 2 mm D cutting |
| 0.77 mm L wiper edge |
| 90 deg included |
| 10 deg major cutting edge |
| 11.3 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
