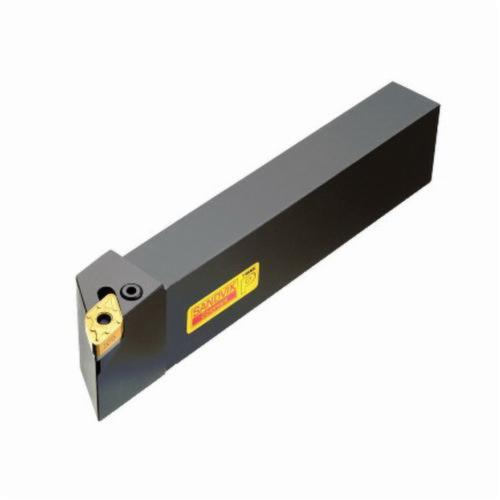

Sandvik Coromant 5742478 T-Max P Shank Tool, R/L171.35 Tool Holder, DNMG 150608 (MIIDM) and DNMG 442 (MIIDN) Insert, -3 deg Lead, Rectangle Shank, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5742478 T-Max P Shank Tool, R/L171.35 Tool Holder, DNMG 150608 (MIIDM) and DNMG 442 (MIIDN) Insert, -3 deg Lead, Rectangle Shank, Right Hand
SKU1233001
MFGR #5742478
Your Cost: $249.72/ea
Sandvik Coromant Shank Tool, Series: T-Max P, R/L171.35 Tool Holder, 7.874 in Overall Length, Rectangle Shank, 1.5748 in H x 0.9842 in W Shank, Insert Compatibility: DNMG 150608 (MIIDM) and DNMG 442 (MIIDN), 1/2 Insert Seat, Right Hand Cutting, -3 deg Lead Angle, ANSI Code: R171.35-4025-15, ISO Code: R171.35-4025-15, -6 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: T-Max P, R/L171.35 Tool Holder, 7.874 in Overall Length, Rectangle Shank, 1.5748 in H x 0.9842 in W Shank, Insert Compatibility: DNMG 150608 (MIIDM) and DNMG 442 (MIIDN), 1/2 Insert Seat, Right Hand Cutting, -3 deg Lead Angle, ANSI Code: R171.35-4025-15, ISO Code: R171.35-4025-15, -6 deg Rake, Steel
Alternate Catalog Number R171.35-4025-15 ANSI Code R171.35-4025-15 Back of Bar to Cutting Edge R171.35-4025-15 Catalog Number 5742478 Country of Origin IN Finish R/L171.35 Gross Weight Per Pack 3.1200 lb Head Length -6 deg Inscribed Circle -3 deg Insert Seat Size 1/2 ISO Code R171.35-4025-15 Item Group 210 Material Steel Series T-Max P Shank Type Rectangle Type Indexable UPC 11 69826214750 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility DNMG 150608 (MIIDM) and DNMG 442 (MIIDN) Lead Angle -3 deg Overall Length 7.874 in Rake -6 deg Shank Size 1.5748 in H x 0.9842 in W Tool Holder Style R/L171.35 0 deg body machine side 0 deg body workpiece side Without coolant entry No coolant exit -7 deg inclination 93 deg cutting edge 27 deg maximum ramping 20 life cycle state 38 mm maximum overhang 5 Nm torque 28.7 mm W functional Lever hole clamping D - 55 deg diamond insert ANSI Code: R171.35-4025-15 ISO Code: R171.35-4025-15
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | R171.35-4025-15 |
| ANSI Code | R171.35-4025-15 |
| Back of Bar to Cutting Edge | R171.35-4025-15 |
| Catalog Number | 5742478 |
| Country of Origin | IN |
| Finish | R/L171.35 |
| Gross Weight Per Pack | 3.1200 lb |
| Head Length | -6 deg |
| Inscribed Circle | -3 deg |
| Insert Seat Size | 1/2 |
| ISO Code | R171.35-4025-15 |
| Item Group | 210 |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| Type | Indexable |
| UPC 11 | 69826214750 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | DNMG 150608 (MIIDM) and DNMG 442 (MIIDN) |
| Lead Angle | -3 deg |
| Overall Length | 7.874 in |
| Rake | -6 deg |
| Shank Size | 1.5748 in H x 0.9842 in W |
| Tool Holder Style | R/L171.35 |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Without coolant entry |
| No coolant exit |
| -7 deg inclination |
| 93 deg cutting edge |
| 27 deg maximum ramping |
| 20 life cycle state |
| 38 mm maximum overhang |
| 5 Nm torque |
| 28.7 mm W functional |
| Lever hole clamping |
| D - 55 deg diamond insert |
| ANSI Code: R171.35-4025-15 |
| ISO Code: R171.35-4025-15 |
