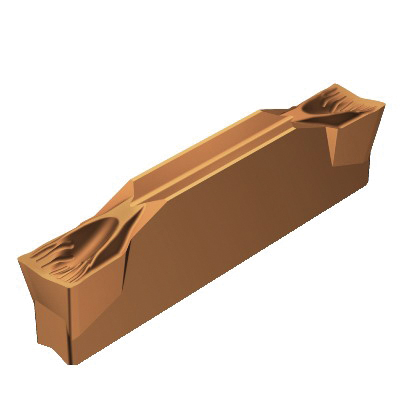

Sandvik Coromant 5741483 CoroCut® 1-2, R123F2-0250-0501-CF 1125, R123x2-CF Insert, Carbide, 1125, R123F2-0250-0501-CF 1125
R123 Cut-off & Parting Inserts
477719
MFG #: 5741483
Sandvik Coromant
35.60000
/ ea
Sandvik Coromant Parting Insert, Series: CoroCut® 1-2, R123x2-CF Insert, 0.1692 in Thickness, 0.0984 in Width, 0.781 in Length, CF Chipbreaker, 0.005 in Corner Radius, Manufacturer's Grade: 1125, ANSI Code: R123F2-0250-0501-CF 1125, ISO Code: R123F2-0250-0501-CF 1125, Right Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
- Features
| 7 deg clearance |
| 20 life cycle state |
| 0 deg body machine side |
| Finishing operation |
| Concave clamping |
| 0 mm cutting width lower tolerance |
| 0.1 mm W cutting upper tolerance |
| 5 deg |
| -0.1 mm corner radius lower tolerance |
| 0.1 mm corner radius upper tolerance |
| E cutting edge condition |
| 5 deg lead |
| 2 edges |
| V or rail clamp with screw mounting |
| Positive rake |
| 0.03 - 0.16 mm/r cutting feed |
| 7 insert mounting style code |
| F insert seat size code |
