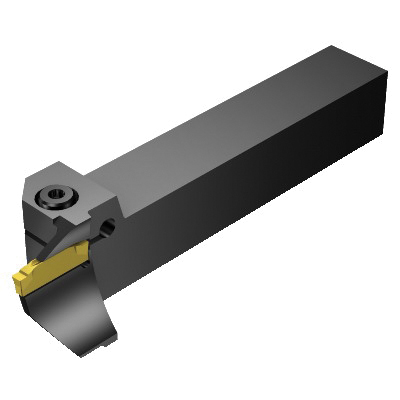

Sandvik Coromant 5741177 CoroCut® 1-2, Right Hand, N123K2-0600-0004-TF Insert, K Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant 5741177 CoroCut® 1-2, Right Hand, N123K2-0600-0004-TF Insert, K Insert Seat
SKU1028774
MFGR #5741177
Your Cost: $336.83/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123K2-0600-0004-TF, RF123K100-16B-220BM, 6 in Overall Length, Rectangular Shank, 1 in H x 1 in W Shank, K Insert Seat, Right Hand Cutting, 8.6614 in ID x 9.1338 to 39.3701 in OD Groove Width, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123K2-0600-0004-TF, RF123K100-16B-220BM, 6 in Overall Length, Rectangular Shank, 1 in H x 1 in W Shank, K Insert Seat, Right Hand Cutting, 8.6614 in ID x 9.1338 to 39.3701 in OD Groove Width, Steel
Alternate Catalog Number RF123K100-16B-220BM Catalog Number 5741177 Country of Origin SE Gross Weight Per Pack 1.5500 lb Item Group 480 Material Steel Maximum Workpiece Diameter 39.37 in Minimum Hole Diameter 8.661 in Series CoroCut® 1-2 Through Coolant No Toolholder Type RF123K100 UPC 11 69826219176 UPC 12 69826219176 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility N123K2-0600-0004-TF Insert Seat Size K Overall Length 6 in Screw Type Socket Head Cap Shank Size 1 in H x 1 in W Shank Type Rectangular Versatile parting and grooving Cost efficiency with two edges Secure and efficient machining Without coolant entry No coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 49.403 mm minimum overhang 23.3906 mm width to cutting item reference point 5 Nm torque 2 axial groove support direction 25.4 mm W shank 26.3906 mm W functiona ANSI Code: RF123K100-16B-220BM ISO Code: RF123K100-16B-220BM
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | RF123K100-16B-220BM |
| Catalog Number | 5741177 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.5500 lb |
| Item Group | 480 |
| Material | Steel |
| Maximum Workpiece Diameter | 39.37 in |
| Minimum Hole Diameter | 8.661 in |
| Series | CoroCut® 1-2 |
| Through Coolant | No |
| Toolholder Type | RF123K100 |
| UPC 11 | 69826219176 |
| UPC 12 | 69826219176 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123K2-0600-0004-TF |
| Insert Seat Size | K |
| Overall Length | 6 in |
| Screw Type | Socket Head Cap |
| Shank Size | 1 in H x 1 in W |
| Shank Type | Rectangular |
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 49.403 mm minimum overhang |
| 23.3906 mm width to cutting item reference point |
| 5 Nm torque |
| 2 axial groove support direction |
| 25.4 mm W shank |
| 26.3906 mm W functiona |
| ANSI Code: RF123K100-16B-220BM |
| ISO Code: RF123K100-16B-220BM |
