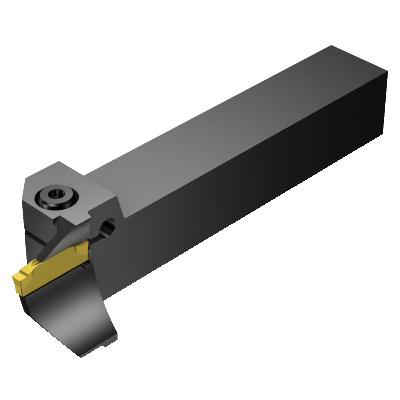

Sandvik Coromant 5741037 CoroCut® 1-2, Right Hand, N123J2-0500-0004-TF Insert, J Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant 5741037 CoroCut® 1-2, Right Hand, N123J2-0500-0004-TF Insert, J Insert Seat
SKU468010
MFGR #5741037
Your Cost: $320.05/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123J2-0500-0004-TF, RF123J100-16B-085BM, 6 in Overall Length, Rectangular Shank, 1 in H x 1 in W Shank, J Insert Seat, Right Hand Cutting, 3.3464 in ID x 3.7401 to 5.1181 in OD Groove Width, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123J2-0500-0004-TF, RF123J100-16B-085BM, 6 in Overall Length, Rectangular Shank, 1 in H x 1 in W Shank, J Insert Seat, Right Hand Cutting, 3.3464 in ID x 3.7401 to 5.1181 in OD Groove Width, Steel
Alternate Catalog Number RF123J100-16B-085BM Catalog Number 5741037 Country of Origin SE Gross Weight Per Pack 1.5500 lb Item Group 480 Material Steel Maximum Workpiece Diameter 5.118 in Minimum Hole Diameter 3.346 in Series CoroCut® 1-2 Through Coolant No Toolholder Type RF123J100 UPC 11 69826219162 UPC 12 69826219162 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility N123J2-0500-0004-TF Insert Seat Size J Overall Length 6 in Screw Type Socket Head Cap Shank Size 1 in H x 1 in W Shank Type Rectangular Versatile parting and grooving Cost efficiency with two edges Secure and efficient machining Without coolant entry No coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 48.4124 mm minimum overhang 23.8906 mm width to cutting item reference point 4.5 Nm torque 2 axial groove support direction 25.4 mm W shank 26.3906 mm W functiona ANSI Code: RF123J100-16B-085BM ISO Code: RF123J100-16B-085BM
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | RF123J100-16B-085BM |
| Catalog Number | 5741037 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.5500 lb |
| Item Group | 480 |
| Material | Steel |
| Maximum Workpiece Diameter | 5.118 in |
| Minimum Hole Diameter | 3.346 in |
| Series | CoroCut® 1-2 |
| Through Coolant | No |
| Toolholder Type | RF123J100 |
| UPC 11 | 69826219162 |
| UPC 12 | 69826219162 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123J2-0500-0004-TF |
| Insert Seat Size | J |
| Overall Length | 6 in |
| Screw Type | Socket Head Cap |
| Shank Size | 1 in H x 1 in W |
| Shank Type | Rectangular |
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 48.4124 mm minimum overhang |
| 23.8906 mm width to cutting item reference point |
| 4.5 Nm torque |
| 2 axial groove support direction |
| 25.4 mm W shank |
| 26.3906 mm W functiona |
| ANSI Code: RF123J100-16B-085BM |
| ISO Code: RF123J100-16B-085BM |
